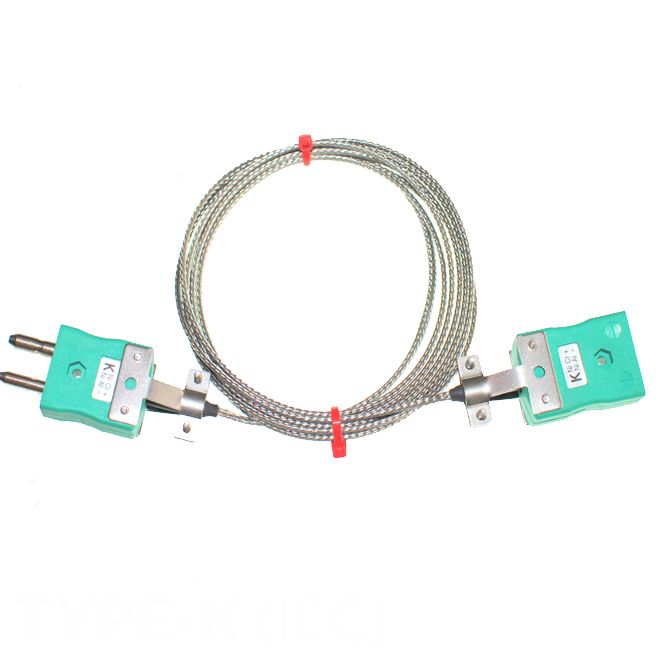

Type K Glassfibre Thermocouple Extension Leads with Standard Plug & Sockets (IEC)
Change Currency
SKU
XE-7041
£39.74
£33.12
Cable Description
- Glassfibre insulated extension cable with stainless steel overbraiding
- Thermocouple type K in lengths 2 or 5 metre
- 7/0.2mm stranded conductors
- Glassfibre insulated flat pair construction, conductors laid flat, Glassfibre insulated with Glassfibre jacket, silicone -varnished throughout + stainless steel overbraid for added protection and mechanical strength
- Good temperature resistance but not suitable where fluids are present
- Cable clamp fitted for securing cable to plugs
- Tolerance Class 2 to IEC-584
- Insulation rating -60°C to 350°C (short periods up to 400°C)
- Colour code (cores & jacket) to IEC-584-3
Connector Description
- All contacts are polarised to ensure correct connection
- Cable clamp available for securing cable to plugs
- Type K contacts are made from true Thermocouple alloys
- Colour coded in accordance with IEC specification
- Maximum continuous operating temperature 220°C
General Description | Good strength to physical disturbance and high temperature (up to 400°C). Will not prevent ingress of fluids. |
---|---|
Cable Length | 2M or 5M |
Cable Type | Flat pair cable |
Connector Type | Thermocouple Plugs & Sockets |
Connector Size | Standard |
Core / Strands | 7/0.2mm |
Conductor Cross Section 7/0.2 (mm2) | 0.219 |
Outer Colour | Silver |
Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
Max. Temperature | +350°C (short periods up to 400°C) |
Min. Temperature | -60°C |
+ Conductor | Nickel Chromium |
- Conductor | Nickel Aluminium |
Screen | Yes |
Screen Type | Stainless Steel Ovrbraid |
Standards Met | Colour code (cores & jacket) to IEC-584-3 |
Thermocouple Type | K |
Tolerance | Class 2 |
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
