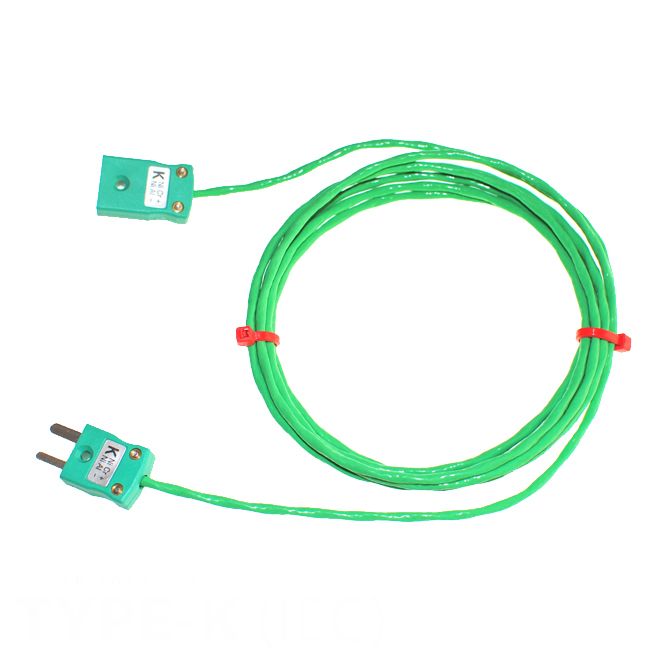

Type K PFA Thermocouple Extension Leads with Miniature Plug & Socket (IEC)
Change Currency
SKU
XE-7044
£26.48
£22.07
Cable Description
- PFA insulated & screened
- Twisted cores & screened construction for reduced electrical noise
- Conductors PFA insulated and twisted together, stainless steel braided screen, overall PFA sheath
- Good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids
- Thermocouple extension types for K
- Stranded 7/0.2mm conductors
- Available in 2 & 5 metre lengths
- Insulation rating -75°C to 260°C
- Colour code (cores & jacket) to IEC-584
Connector Description
- Ideal for general purpose use
- All contacts are polarised to ensure correct connection
- Colour coded in accordance with IEC specification
- Maximum continuous operating temperature 220 deg°C
| General Description | Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility. PTFE better for steam/elevated pressure environments. |
|---|---|
| Cable Length | 2M or 5M |
| Cable Type | Conductors PFA insulated and twisted together, stainless steel braided screen, overall PFA sheath |
| Connector Type | Thermocouple Plug & Socket |
| Connector Size | Miniature |
| Core / Strands | 7/0.2mm |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Green |
| + Colour | Green |
| - Colour | White |
| Drain Wire | No |
| Insulation Material | PFA Insulated |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Max. Temperature | 260°C |
| Min. Temperature | -75°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | Yes |
| Screen Type | Stainless Steel Braided |
| Standards Met | Colour code (cores & jacket) to IEC-584-3 |
| Thermocouple Type | K |
| Termination Type | Miniature Thermocouple Plug |
| Tolerance | Class 1 |
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
