Type K Glassfibre Insulated Flat Pair thermocouple Cable / Wire (IEC)

Change Currency

SKU
XE-2163
£6.83 £5.69
Lead Time:
Select Options
Weight:
1.00KG
Tariff Code:
90259000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
FOR POSTAGE AND DELIVERY TERMS:

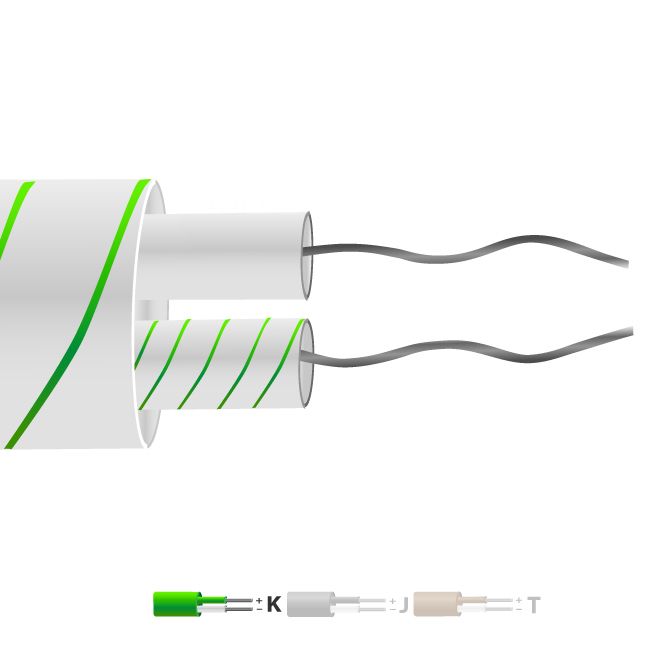

Type K Glassfibre Insulated Flat Pair thermocouple Cable / Wire (IEC)

Glassfibre insulated flat pair construction, conductors laid flat, Glassfibre insulated with Glassfibre overall, silicone varnished throughout. Good temperature resistance but not suitable where fluids are present.





General Description Good temperature range but will not prevent ingress of fluids. Fairly flexible but does not provide good mechanical protection.
Cable Length 5m, 10m, 25m, 50m, 100m
Cable Type Flat pair cable
Core / Strands 1/0.3mm / 1/0.508mm / 7/02.mm / 1/0.2mm
Conductor Cross Section 1/0.2 (mm2) 0.032
Conductor Cross Section 1/0.315 (mm2) 0.078
Conductor Cross Section 1/0.508 (mm2) 0.203
Conductor Cross Section 7/0.2 (mm2) 0.219
Outer Colour Green & White
+ Colour Green
- Colour White
Drain Wire No
Insulation Material Glassfibre insulated
Loop Resistance 1/0.2 (Ohms per combined metre) 31.8
Loop Resistance 1/0.315 (Ohms per combined metre) 12.8
Loop Resistance 1/0.508 (Ohms per combined metre) 4.9
Loop Resistance 7/0.2 (Ohms per combined metre) 4.5
Max. Temperature +350°C (short periods up to 400°C)
Min. Temperature -60°C
+ Conductor Nickel Chromium
- Conductor Nickel Aluminium
Screen No
Standards Met Colour code (cores & jacket) to IEC-584-3
Thermocouple Type K
Tolerance Class 2

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
