Type N PFA Insulated Twin Twisted Pair Thermocouple Cable / Wire (IEC)
Change Currency
SKU
XE-2422
£5.56
£4.63

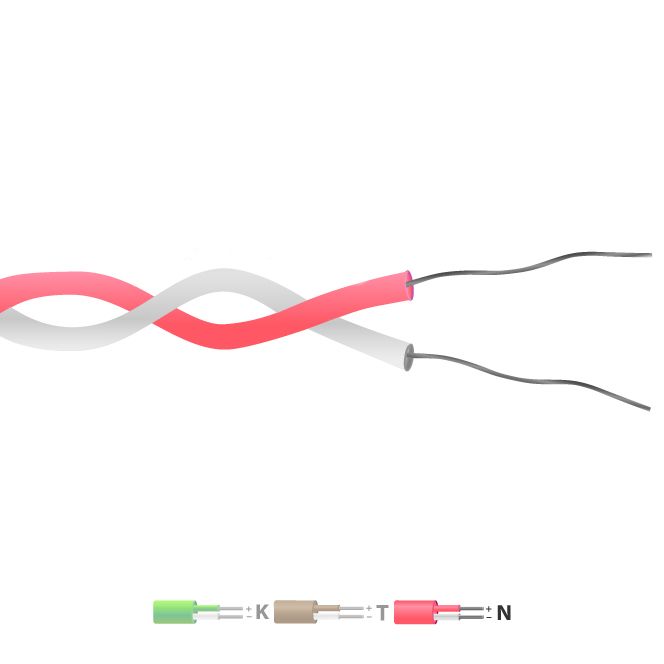

Type N PFA Insulated Twin Twisted Pair Thermocouple Cable / Wire (IEC)
PFA Teflon® twin twisted pair for extending or making simple thermocouples. PFA Teflon®has a good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids, gasses, steam & pressure.
Specifications
| General Description | Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility. PTFE better for steam/elevated pressure environments. |
|---|---|
| Cable Length | 10m, 25m |
| Cable Type | Single pair of PFA insulated conductors twisted together |
| Core / Strands | 1/0.2mm |
| Conductor Cross Section 1/0.2 (mm2) | 0.032 |
| + Colour | Pink |
| - Colour | White |
| Drain Wire | No |
| Insulation Material | PFA Teflon® |
| Loop Resistance 1/0.2 (Ohms per combined metre) | 44.2 |
| Max. Temperature | +260°C |
| Min. Temperature | -75°C |
| + Conductor | Nicrosil |
| - Conductor | Nisil |
| Screen | No |
| Standards Met | Colour code (cores & jacket) to IEC-584-3 |
| Thermocouple Type | N |
| Tolerance | Class 1 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
