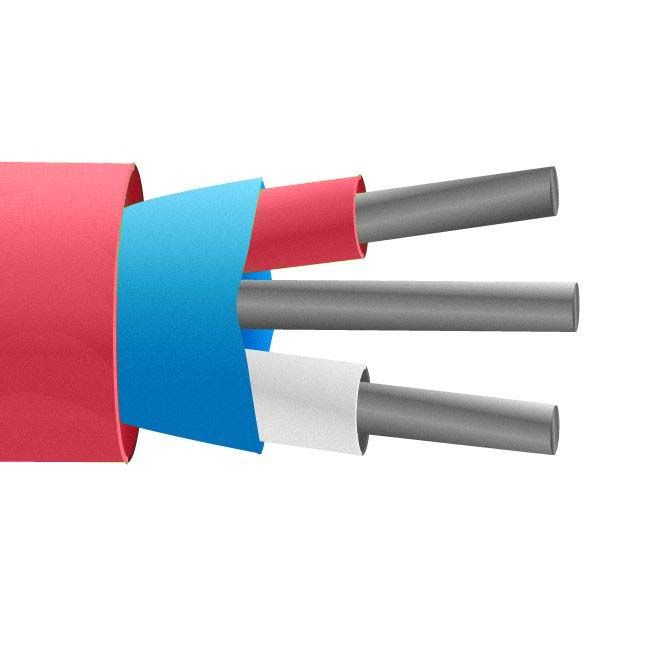

Type N PVC Insulated Mylar Screened Thermocouple Cable / Wire (IEC)
Change Currency
SKU
XE-2527
£18.86
£15.72
Type N PVC Insulated Mylar Screened Thermocouple Cable / Wire (IEC)
Compensating cable resembles the thermoelectric characteristic of the relevant thermocouple over a limited ambient temperature range, 0° to 80°C typically. Since these cables are made from low cost materials, cost savings can be achieved on plant installations compared with running true thermocouple extension cable.
Specifications
| General Description | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Cable Length | 10m, 25m, 50m, 100m |
| Cable Type | Twisted cores & screened construction for reduced electrical noise |
| Core / Strands | 7/0.2mm |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Pink |
| + Colour | Pink |
| - Colour | White |
| Drain Wire | Yes |
| Insulation Material | PVC Insulated with a mylar screen |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 6.2 |
| Max. Temperature | +105°C |
| Min. Temperature | -10°C |
| + Conductor | Nicrosil |
| - Conductor | Nisil |
| Screen | Yes |
| Screen Type | Mylar |
| Standards Met | Colour code (cores & jacket) to IEC-584-3 |
| Thermocouple Type | N |
| Tolerance | Class 2 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
