4 Core PVC Insulated, Tin Plated Copper Screen, PRT Sensor Cable / Wire

Change Currency

SKU
XE-2714
£18.02 £15.02
Lead Time:
Select Options
Tariff Code:
90259000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

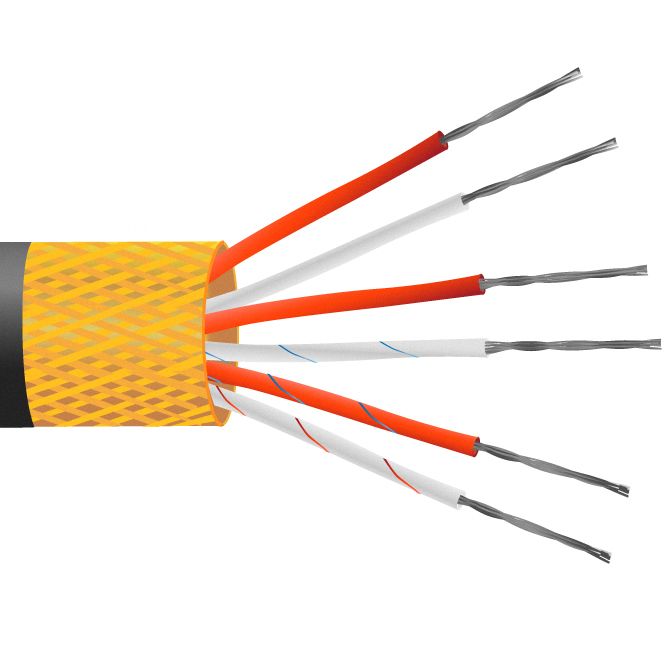

4 Core PVC Insulated, Tin Plated Copper Screen, PRT Sensor Cable / Wire

PVC insulated cable for extending Platinum Resistance Thermometers. Commonly used for Pt100Ω thermometers but also suitable with other types such as Pt130, Pt500 & Pt1000Ω

Specifications

General Description 4 core PVC insulated 7/0.2mm tin plated copper conductors, twisted cores, polyester tape & nylon cord, tin plated copper braided screen with PVC insulated outer jacket
Cable Length 10, 25, 50m
Cable Type Mylar shield with tin plated copper braiding
Core / Strands 7/0.2mm
Insulation Material PVC insulation
Max. Temperature +105°C
Min. Temperature -10°C
Number of Wires 4
Standards Met Cores colour coded 2 x Red / 2 x White to IEC-751 with black outer jacket

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.



Product Download Icon

Cable / Wire Insulation Colour Codes

Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
