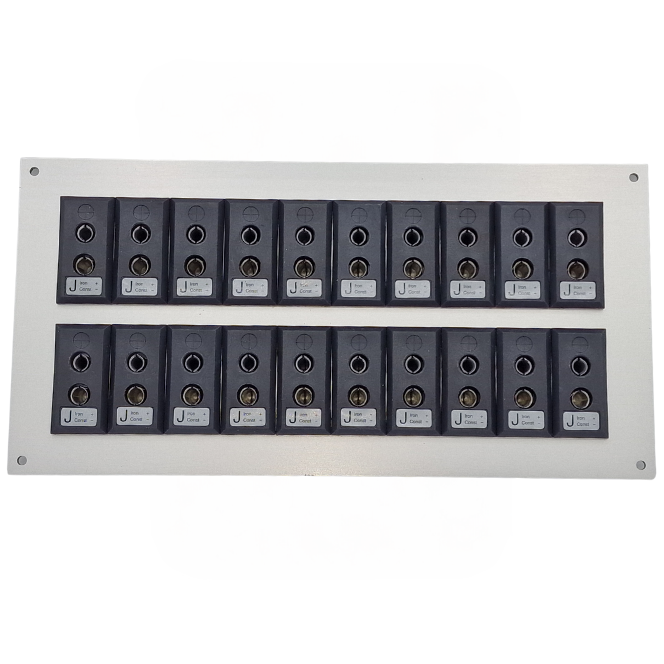

Thermocouple Connector Aluminium Panel with Type J ANSI Standard Sockets
Change Currency
Pre-assembled Standard Thermocouple Connector Panels
A range of pre-assembled standard horizontal panel assemblies designed for use with thermocouples or leads with standard plugs. They are robust and perfect for mounting in control rooms, test stands, laboratory applications, control rooms, and more. They support calibration codes including K, J, & T with quick wire sockets and can accommodate 1-24 way circuits, with a maximum temperature range up to +120°C.
- Supplied pre-fitted with Standard Fascia Sockets
- 1 – 24 ways circuits
- Type K, J & T calibration available
- Maximum temperature 120°C
Typical Applications
- OEMs
- Instrumentation panel builders
- Control rooms
- Test Rigs and Skids
Sizing Chart
| 1 WAY - H66mm x W50mm | 2 WAY - H66mm x W69mm | 3 WAY - H66mm x W88mm | 4 WAY - H66mm x W107mm |
| 5 WAY - H66mm x W126mm | 6 WAY - H66mm x W145mm | 8 WAY - H66mm x W183mm | 10 WAY - H66mm x W221mm |
|
12 WAY - H66mm x 259mm |
16 WAY - H111mm x W183mm | 18 WAY - 111mm x W202mm | 20 WAY - H111mm x W221mm |
| 24 WAY - H111mm x W259mm |
Specifications
| General Description | A selection of standard ANSI pre-assembled thermocouple panels, 1-24 way, to suit your specific application. Accepts standard round pin plug connector. Nylon clip for quick, simple fixing to panel. |
|---|---|
| Thermocouple Type | J ANSI |
| Connector Size | Standard |
| Connector Type | Fascia Mounting Socket |
| Colour | Black |
| Max. Temperature | 120°C |
| +Positive Contact | Iron |
| -Negative Contact | Copper Nickel |
| Standards Met | BS EN 50212:1997. RoHS |
3D Animation of Standard IEC Thermocouple Connector Fascia Socket From Labfacility
Standard Rectangular Fascia Socket IEC *Standard thermocouple fascia mounting socket with clip Panel mounting *Accepts standard round pin plug connectors *Nylon clip for quick, simple fixing to panel *All fascia mounting sockets are polarised by means of unequally sized pins *Colour coded in accordance with IEC specification *Max temperature 120°C About Labfacility Formed in 1971, Labfacility specialises in the field of Temperature and Process Measurement. We are the largest UK manufacturer of both temperature sensors and thermocouple connectors. Quality and Service are key elements in the continued growth of Labfacility; technical support is always freely available from our experienced technical sales teams and the company has ISO9001 accreditation. Labfacility specialises in the manufacture of Temperature Sensors, Thermocouple Connectors and Precision Electronic Thermometers (Tempmaster PRO & Labcal PRO), and also stocks a vast range of Thermocouple Wire and Cable. visit www.labfacility.com
