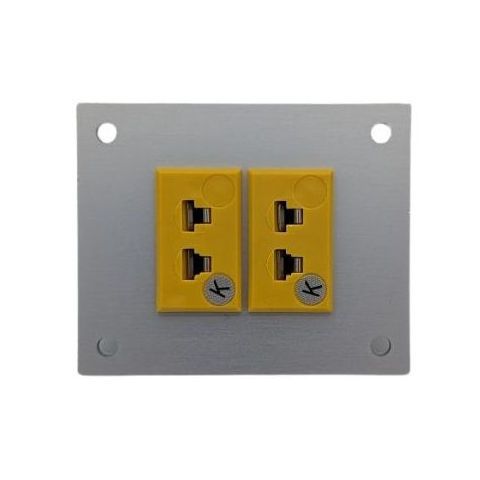

Thermocouple Connector Aluminium Panel with Type K ANSI Miniature Sockets
Change Currency
Pre-assembled Miniature Thermocouple Connector Panels
A range of pre-assembled miniature horizontal panel assemblies designed for use with thermocouples or leads with miniature plugs. They are robust and perfect for mounting in control rooms, test stands, laboratory applications, control rooms, and more. They support calibration codes including K, J & T with quick wire sockets and can accommodate 1-24 way circuits, with a maximum temperature range up to +120°C.
- Supplied pre-fitted with Miniature Fascia Sockets
- 1 – 24 ways circuits
- Type K, J & T calibration available
- Maximum temperature 120°C
Typical Applications
- OEMs
- Instrumentation panel builders
- Control rooms
- Test Rigs and Skids
Sizing Chart
| 1 WAY - H45mm x W40mm | 2 WAY - H45mm x W55mm | 3 WAY - H45mm x W70mm | 4 WAY - H45mm x W85mm |
| 5 WAY - H45mm x W100mm | 6 WAY - H45mm x W115mm | 8 WAY - H45mm x W145mm | 10 WAY - H45mm x W175mm |
| 12 WAY - H45mm x W205mm | 16 WAY - H75mm x W145mm | 18 WAY - H75mm x W160mm | 20 WAY - H75mm x W175mm |
| 24 WAY - H75mm x W205mm |
Specifications
| General Description | A selection of miniature IEC pre-assembled thermocouple panels, 1-24 way, to suit your specific application. All fascia mounting sockets are polarised by means of unequally sized pins |
|---|---|
| Thermocouple Type | K ANSI |
| Connector Size | Miniature |
| Connector Type | Fascia Mounting Socket |
| Colour | Yellow |
| Max. Temperature | 120°C |
| +Positive Contact | Nickel Chromium |
| -Negative Contact | Nickel Alloy |
| Standards Met | BS EN 50212:1997. RoHS |
3D Animation of Miniature ANSI Thermocouple Connector Fascia Socket From Labfacility
Miniature Rectangular Fascia Socket ANSI *Panel mounting *Clip for quick, simple fixing to panel *Max temperature 120 deg C About Labfacility Formed in 1971, Labfacility specialises in the field of Temperature and Process Measurement. We are the largest UK manufacturer of both temperature sensors and thermocouple connectors. Quality and Service are key elements in the continued growth of Labfacility; technical support is always freely available from our experienced technical sales teams and the company has ISO9001 accreditation. Labfacility specialises in the manufacture of Temperature Sensors, Thermocouple Connectors and Precision Electronic Thermometers (Tempmaster PRO & Labcal PRO), and also stocks a vast range of Thermocouple Wire and Cable. Visit www.labfacility.com
