IEC Miniature Thermocouple Connectors

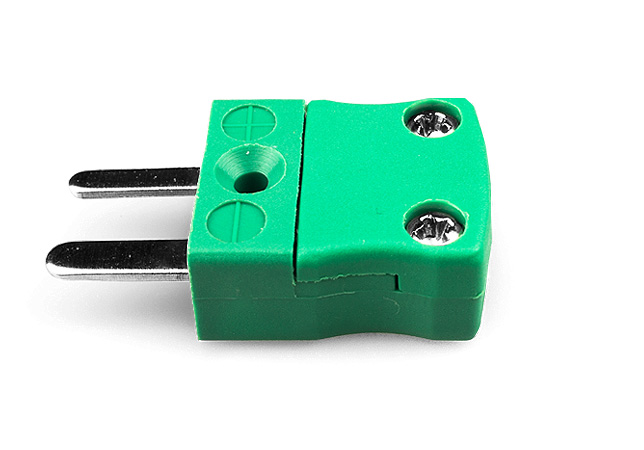

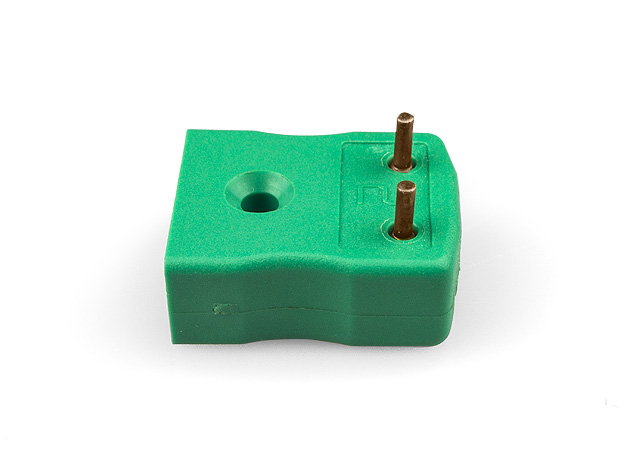

Miniature Thermocouple Plug IEC
Miniature connector with flat plug pins , contacts are polarised to prevent incorrect connection.

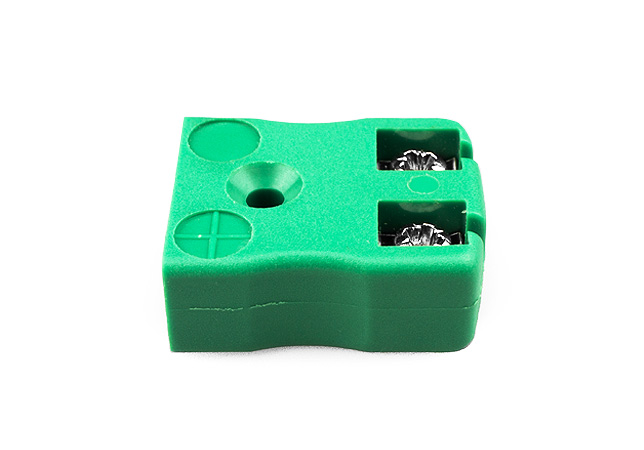

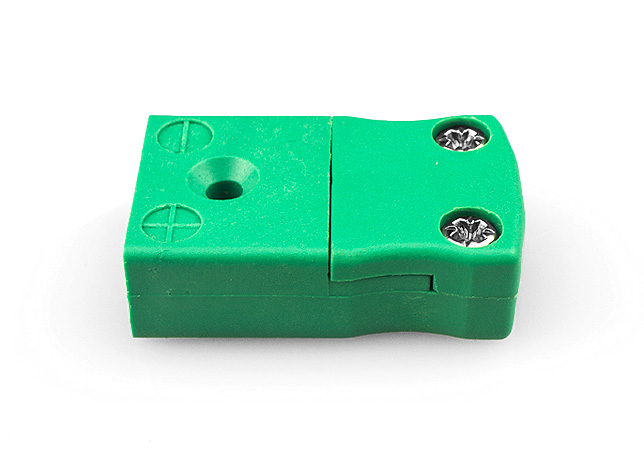

Miniature Thermocouple In-Line Socket IEC
Miniature socket with thermocouple contacts. Contacts are polarised to prevent incorrect connection

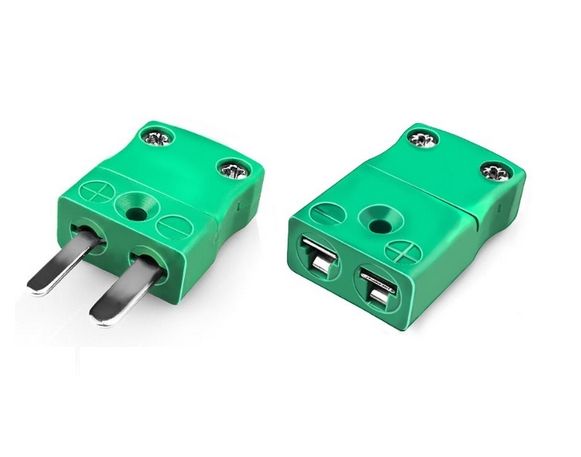

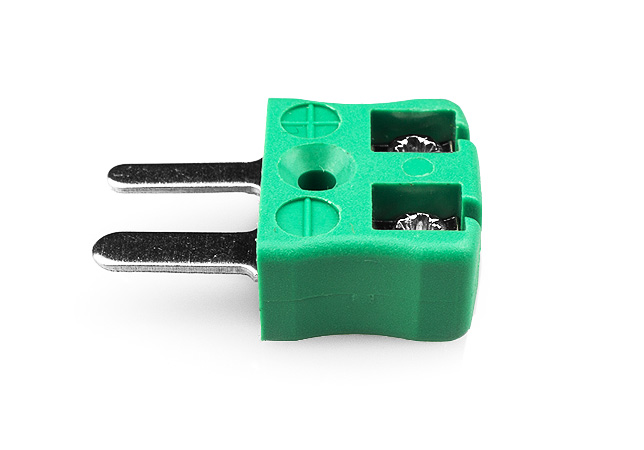

Miniature Thermocouple Plug & Socket IEC
Miniature connector plug and socket with flat plug pins, contacts are polarised to prevent incorrect connection.

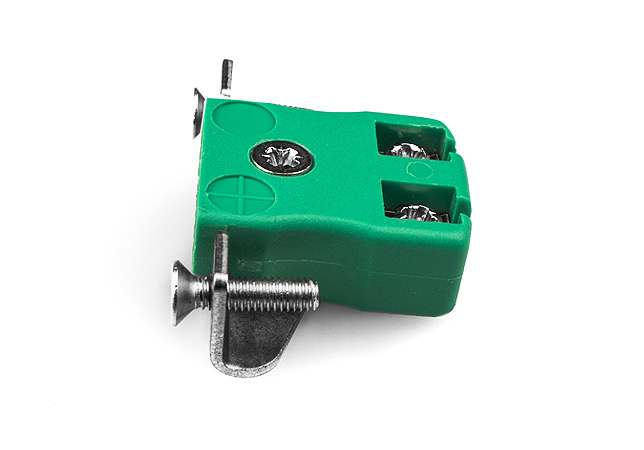

Miniature Quick Wire Thermocouple Plug IEC
Miniature connector with flat plug pins Easy 'jab-in' connection for rapid termination
Miniature Quick Wire Thermocouple Socket IEC
Miniature socket with thermocouple contacts Easy 'jab-in' connection for rapid termination

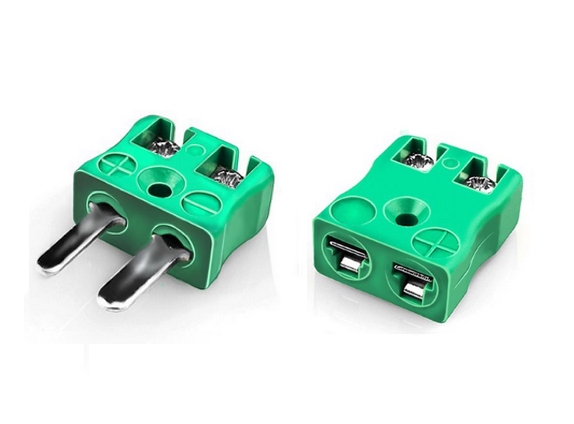

Miniature Thermocouple Quick Wire Plug & Socket IEC
Miniature connector plug & socket with flat plug pins Easy 'jab-in' connection for rapid termination

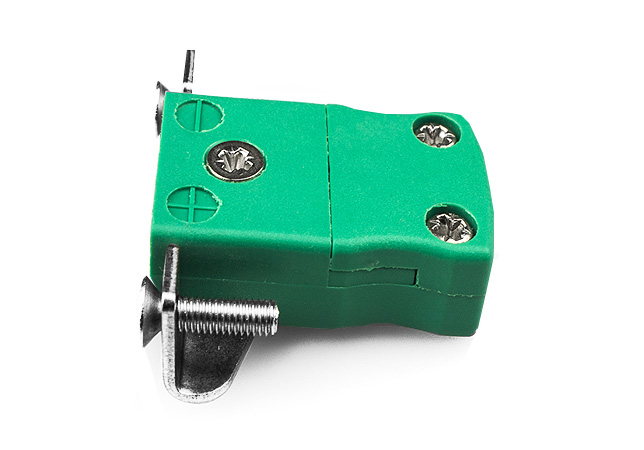

Miniature Panel Mount with Stainless Steel Bracket IEC
Durable panel fitting type for secure fastening to panel
Miniature Quick Wire Panel Mount with Stainless Steel Bracket IEC
Miniature size sockets supplied with stainless steel brackets

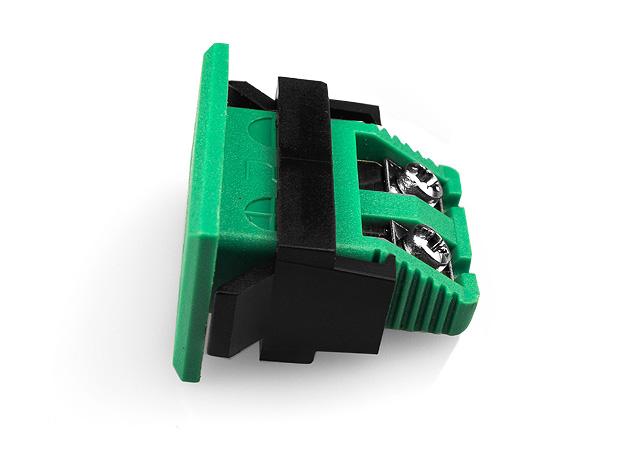

Miniature Rectangular Fascia Socket IEC
Panel mounting Fascia Socket. Clip for quick, simple fixing to panel

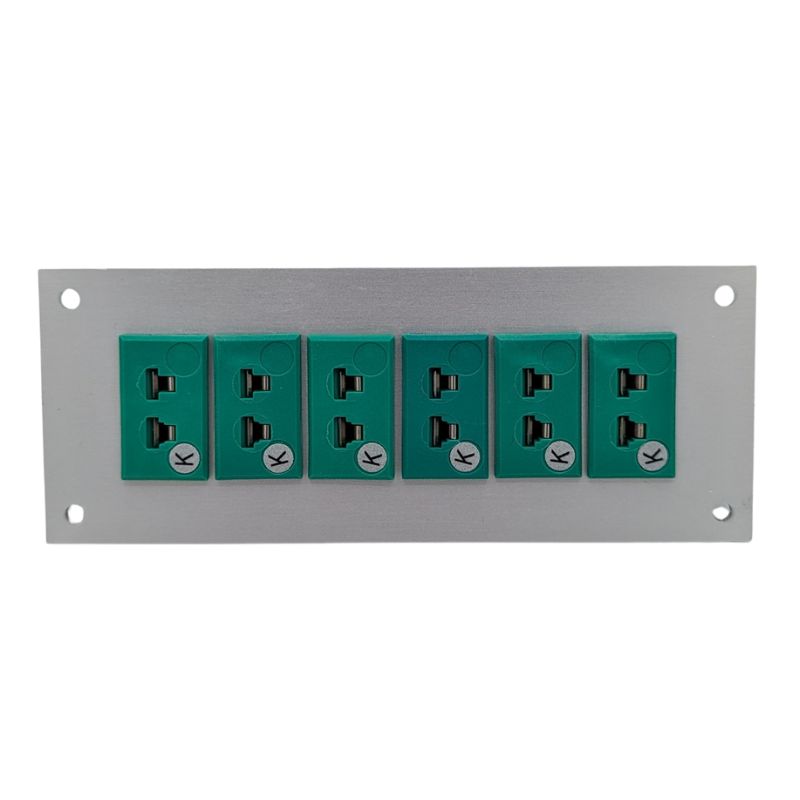

Miniature Thermocouple Panel Systems IEC
A selection of IEC miniature pre-assembled thermocouple panels 1-24 way with thermocouple types to suit your specific application. These panels can be fitted horizontal or vertically.
PCB Mounting Thermocouple Socket IEC with Brass or Tin Plated Pins
Versatile, high quality circuit board mounting miniature socket with brass or tin plated pins

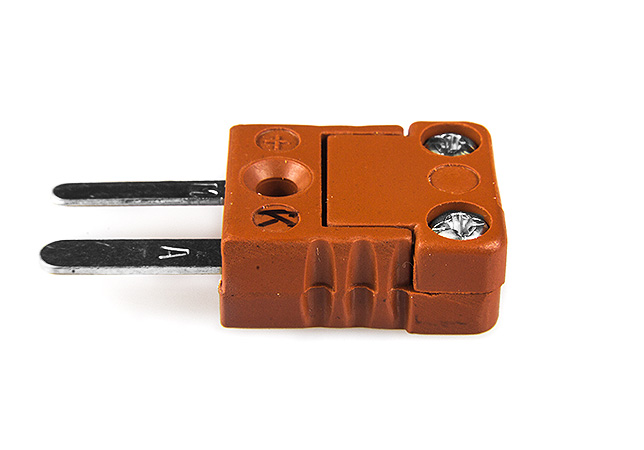

High Temperature Miniature Thermocouple Plug
High temperature plug for use up to 425°C. Heavy duty plastic body

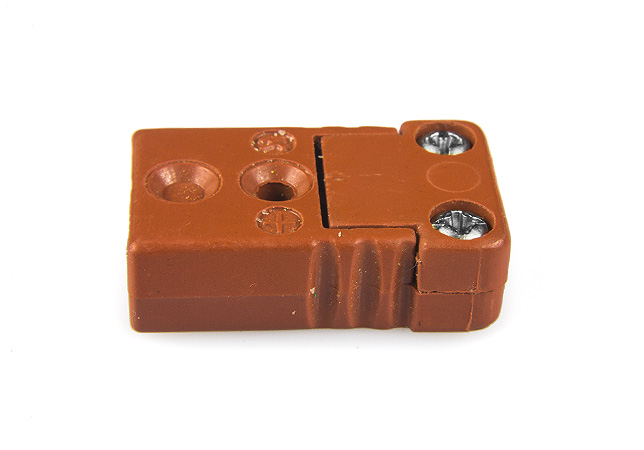

High Temperature Miniature Thermocouple Socket
High temperature socket for use up to 425°C. Heavy duty plastic body

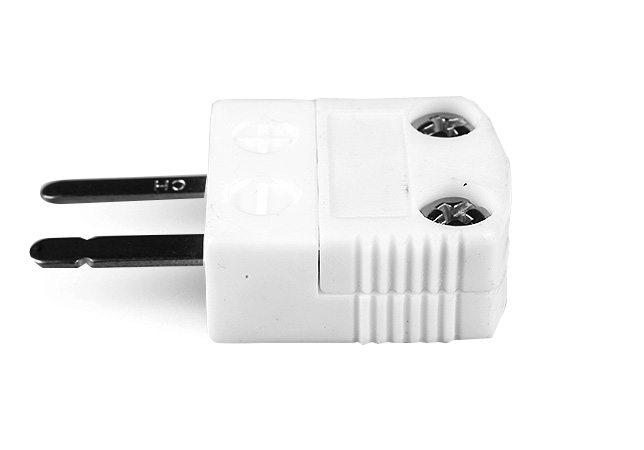

Miniature High-Temp (650°C) Ceramic Thermocouple Plug IEC
Heavy Duty body for use up to 650°C. Plugs fitted with solid thermocouple pins. IEC coloured dot on body.

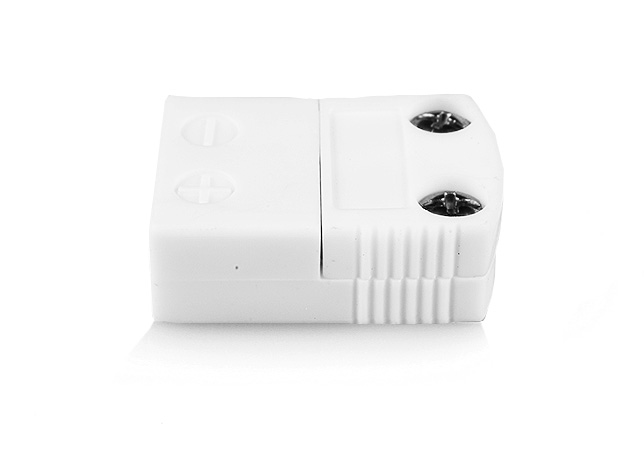

Miniature High-Temp (650°C) Ceramic Thermocouple Socket IEC
Heavy Duty body for use up to 650°C. IEC coloured dot on body.Thermocouple Connectors
Due to their location in often adverse environments such as hot working zones of furnaces and machinery, temperature sensors are liable to corrosion and mechanical damage. The need for occasional replacement is inevitable and the use of suitable connectors permits error-free fast, positive and reliable interchange with no risk of dangerous cross connection.
These thermocouple plugs and sockets have a technical and practical advantage over other types when terminating thermocouple wires or compensating cable in a wide
variety of sizes. The wires are sandwiched between plates of thermocouple compatible material with a clamping screw, accommodating from very fine wires to stranded cables (up to 0.75mm2).
The connectors are colour coded and polarised and will mate with other makes of plugs and sockets. They can be mounted directly on to sheaths of up to 3mm diameter in the case of the miniature version or 1/4” (6.35mm) with the standard version by means of the brass bush available.
The sockets can be supplied as in-line or panel mounting versions with rectangular or circular fascias. The connectors are ruggedly made of glass filled thermoplastic for reliable operation up to 220°C sustained temperature.
The use of thermocouple compatible material eliminates measurement error due to the interconnection and the bright ISA colour coded body ensures clear identity of the type of thermocouple in use.
|
Miniature and standard connectors |
Compensated connections ensure high accuracy | Types K, J, T, E, N, R/S or Copper Copper |
| IEC, ANSI & JIS available | Compatible with all other makes of equivalent connectors | Polarised connector pins guarantee correct polarity |
| Withstand high temperature, 220°C continuous | Rugged construction | Inexpensive |
| PCB mounting available | Wide range of accessories available | In line or panel mounting connectors, single or multi-way |
