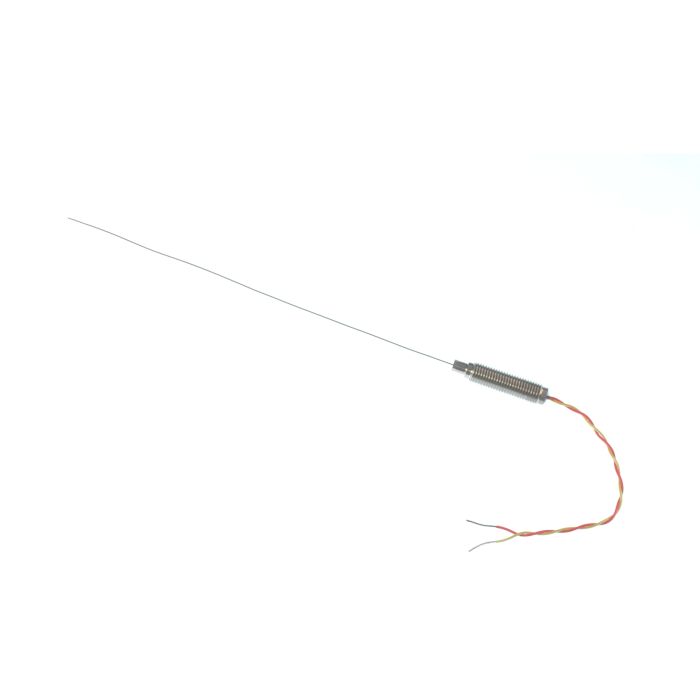

Mineral Insulated Thermocouple with Threaded Pot and 100mm of PFA insulated Twin Twisted ANSI lead - Type K
Change Currency
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|
| Thermocouple Type | K |
| Thermocouple Junction | Insulated hot junction |
| Probe Diameter | Diameters include 1.0, 1.5, 3.0 & 6.0mm |
| Sheath Material | Choice of 310 stainless steel or Inconel® Alloy 600 sheath |
| Pot Type | M8 x 1.0mm fine pitch threaded pot seal (200°C) |
| Cable Length | 100mm |
| Cable Type | PFA twin twisted |
| Core / Strands | 7/0.2mm |
| Cable Termination | Bare tails |
| Max. Temperature | +1100°C (+750°C for 1.0mm) |
| Standards Met | colour coded to ANSI MC96.1. |
