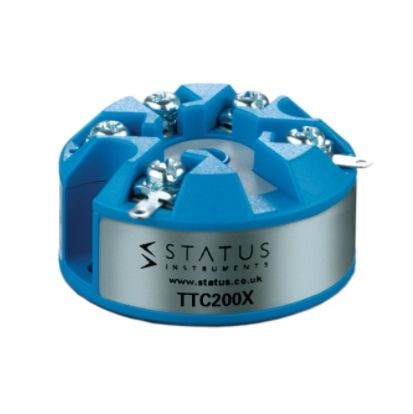

Status TTC200X Temperature Transmitter - Suitable for Thermocouple sensors approved to ATEX and IECEx standards

• K, J, N, E, T, R, S, L, U, B, C(W5), D(W3), G(W) plus mV Inputs
• Sensor Calibration Feature
• Isolated 4/20mA Output
• Version For Hazardous Areas
• Gost Certification
• Vibration Test Certification

The TTR220X is approved to ATEX and IECEx standards allowing for use in hazardous area applications.

The TTC200X “smart” in head temperature transmitter accepts thermocouple temperature sensors and converts the sensor output over a configured range to a standard industrial (4 to 20) mA transmission signal.

PC configuration allows the user to select TC type, Range, Filter, units, linearization and Burnout direction, without
requiring calibration equipment. Additionally, the user may read live process data when connected to the PC, this
allows for sensor offset, and output alignment calibration, where the user can enter values to match the actual
process and therefore reducing system errors.

If required the desired range can be specified at the time of order, removing the need for user configuration.
If the range is not specified then the transmitter will be shipped with the default range of (0 to 1000) °C type K.
