Type J PTFE Insulated Flat Pair Thermocouple Cable / Wire (IEC)
Change Currency
SKU
XE-2255
£31.66
£26.38

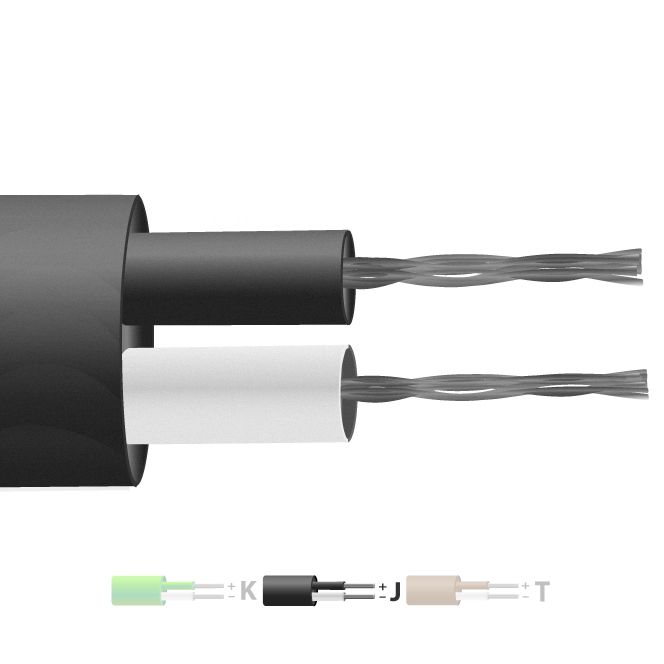

Type J PTFE Insulated Flat Pair Thermocouple Cable / Wire (IEC)
PTFE insulated flat pair. PTFE has a good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids.
Specifications
| General Description | Resistant to oils, acids adverse agents and fluids. Good mechanical strength and flexibility. |
|---|---|
| Cable Length | 10m, 25m, 50m, 100m |
| Cable Type | Flat pair cable |
| Core / Strands | 7/0.2mm |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Black |
| + Colour | Black |
| - Colour | White |
| Drain Wire | No |
| Insulation Material | PTFE insulated |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 2.7 |
| Max. Temperature | +260°C |
| Min. Temperature | -75°C |
| + Conductor | Iron |
| - Conductor | Constantan |
| Screen | No |
| Standards Met | Colour code (cores & jacket) to IEC-584-3 |
| Thermocouple Type | J |
| Tolerance | Class 1 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
