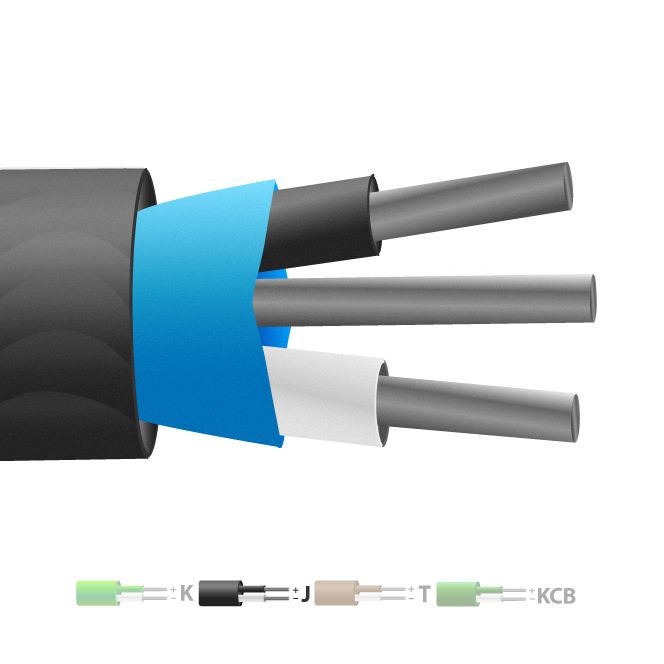

Type J PVC Insulated Mylar Screened Thermocouple Cable / Wire (IEC)

Change Currency

SKU
XE-2212
£10.78 £8.98
Lead Time:
Select Options
Weight:
1.00KG
Tariff Code:
90259000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

Type J PVC Insulated Mylar Screened Thermocouple Cable / Wire (IEC)

Compensating cable resembles the thermoelectric characteristic of the relevant thermocouple over a limited ambient temperature range, 0° to 80°C typically. Since these cables are made from low cost materials, cost savings can be achieved on plant installations compared with running true thermocouple extension cable.

Specifications

General Description Good general purpose insulation for 'light' environments. Waterproof and very flexible.
Cable Length 10, 25, 50, 100m
Cable Type Twisted cores & screened construction for reduced electrical noise
Core / Strands 7/0.2mm
Conductor Cross Section 7/0.2 (mm2) 0.219
Outer Colour Black
+ Colour Black
- Colour White
Drain Wire Yes
Insulation Material PVC Insulated with a mylar screen
Loop Resistance 7/0.2 (Ohms per combined metre) 2.7
Max. Temperature +105°C
Min. Temperature -10°C
+ Conductor Iron
- Conductor Constantan
Screen Yes
Screen Type Mylar
Standards Met Colour code (cores & jacket) to IEC-584-3
Thermocouple Type J
Tolerance Class 2

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
