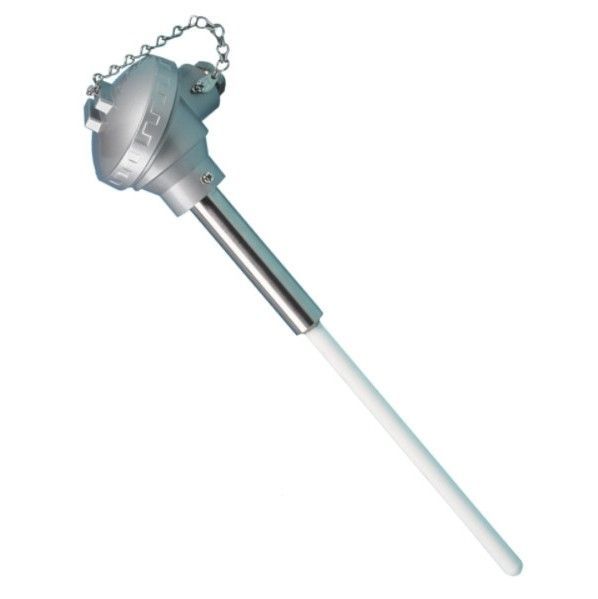

Ceramic Kiln Thermocouple For High Temperature (1400°C) with Aluminous Porcelain sheath - Type K - 300mm length
Change Currency
SKU
XE-6950-001
£145.18
£120.98
Ceramic Kiln Thermocouples For High Temperature - The 100 mm long stainless steel support tube attaches the ceramic sheath to the industrial head and is included in the overall sheath length.
Specifications
| General Description | Ceramic thermocouples for furnaces, kilns and other high temperature applications |
|---|---|
| Sensor Type | Made with rugged 20 gauge (0.8mm dia) thermocouple wire for long-term performance |
| Thermocouple Type | Type K with Aluminous Porcelain sheaths, rated to 1400°C |
| Sheath Material | 12 mm diameter ceramic sheath |
| Min. Temperature | +1400°C |
| IP Rating | IP67 rated industrial protection head with cable entry and screw terminal block |
| Length | 300mm |
| Support Tube | 21 mm O.D. support tube, 100 mm long |
