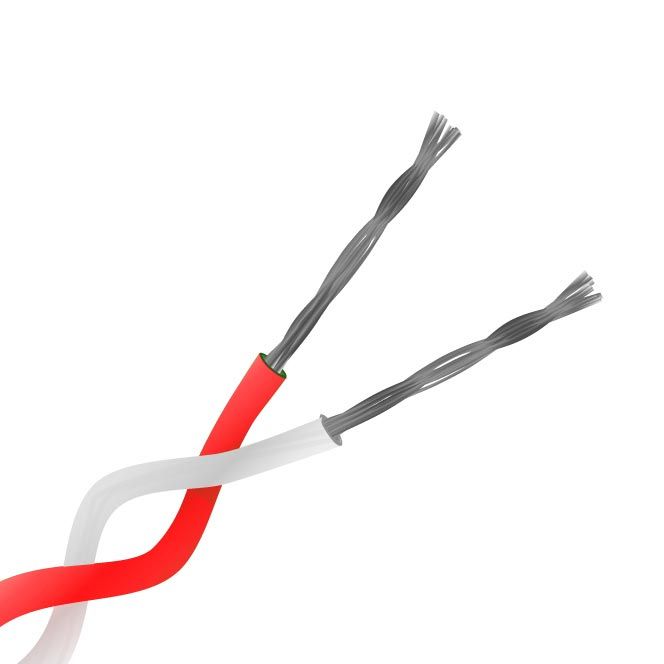

Type K PFA Insulated Twin Twisted Pair Thermocouple Cable / Wire (JIS)
Change Currency
SKU
XE-0543
£6.07
£5.06
Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility. PTFE better for steam/elevated pressure environments.
Specifications
| General Description | Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility. |
|---|---|
| Cable Length | 10m, 25m, 50m, 100m, 200m |
| Cable Type | Single pair of PFA insulated conductors twisted together |
| Core / Strands | 1/0.2mm, 1/0.3mm, 7/0.2mm |
| Conductor Cross Section 1/0.2 (mm2) | 0.032 |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| + Colour | Red |
| - Colour | White |
| Drain Wire | No |
| Insulation Material | PFA Teflon® |
| Loop Resistance 1/0.2 (Ohms per combined metre) | 31.8 |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 12.8 |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Max. Temperature | +260°C |
| Min. Temperature | -75°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | No |
| Standards Met | JIS (Japanese Industrial Standards) |
| Thermocouple Type | K |
