Type N PTFE Insulated Twin Twisted Pair Thermocouple Cable / Wire (IEC)
Change Currency
SKU
XE-2442
£11.11
£9.26

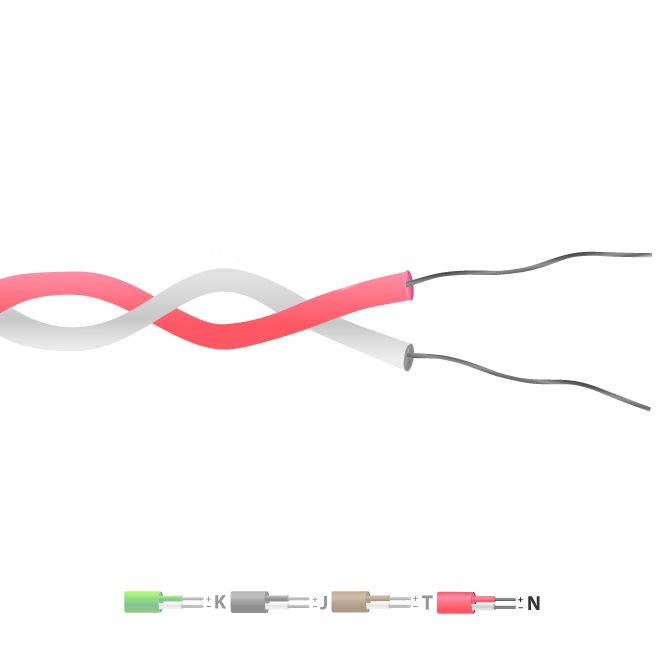

Type N PTFE Insulated Twin Twisted Pair Thermocouple Cable / Wire (IEC)
PTFE insulated twin twisted pair. PTFE has a good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids.
Specifications
| General Description | Resistant to oils, acids adverse agents and fluids. Good mechanical strength and flexibility. |
|---|---|
| Cable Length | 10m, 25m, 50m, 100m |
| Cable Type | Twin twisted pair for extending or making simple thermocouples |
| Core / Strands | 1/0.2mm, 7/0.2mm |
| Conductor Cross Section 1/0.2 (mm2) | 0.032 |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| + Colour | Pink |
| - Colour | White |
| Drain Wire | No |
| Insulation Material | PTFE insulated |
| Loop Resistance 1/0.2 (Ohms per combined metre) | 44.2 |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 6.2 |
| Max. Temperature | +260°C |
| Min. Temperature | -75°C |
| + Conductor | Nicrosil |
| - Conductor | Nisil |
| Screen | No |
| Standards Met | Colour code (cores & jacket) to IEC-584-3 |
| Thermocouple Type | N |
| Tolerance | Class 1 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
