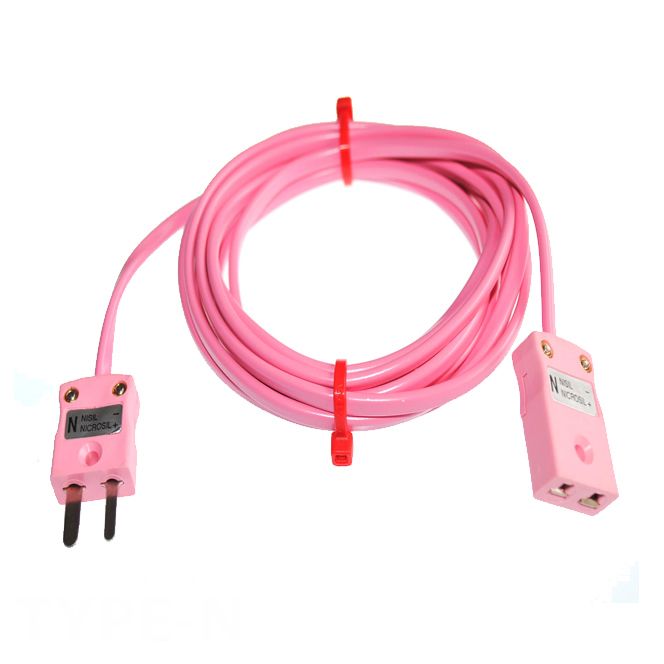

Type N PVC Extension Leads with Miniature Plug & Socket (IEC)
Change Currency
SKU
XE-7009
£20.28
£16.90
Specifications
- Cable Construction: Single pair 7/0.2
- PVC insulated cable / wire
- Laid flat, side by side & PVC sheathed
- Tolerance class 2
- Insulation rating -10 to 105°C
- IEC colour coded
Miniature Connectors
- Miniature connector with flat plug pins
- Miniature socket with thermocouple contacts
- Contacts are polarised to prevent incorrect connection
- Max temperature 220°C
- IEC colour coded
| General Description | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Cable Length | 2M, 5M, 10M, 15M |
| Cable Type | Flat Pair Construction |
| Connector Type | Thermocouple Plug & Socket |
| Connector Size | Miniature |
| Core / Strands | 7/0.2mm |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Pink |
| Drain Wire | No |
| Insulation Material | PVC Insulated |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Max. Temperature | +105°C |
| Min. Temperature | -10°C |
| + Conductor | Nicrosil |
| - Conductor | Nisil |
| Screen | No |
| Standards Met | Colour code (cores & jacket) to IEC-584-3 |
| Thermocouple Type | N |
| Termination Type | Miniature Thermocouple Plug and Socket |
| Tolerance | Class 2 |
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
