9Kg Pull Surface Mount Magnet RTD Sensor (Pt100) - 3m Length

Change Currency

SKU
XE-7803-001
£109.14 £90.95
  • Buy 2 - 14 for £98.23 £81.86 each
  • Buy 15+ for £92.77 £77.31 each
Lead Time:
7 - 10 working days
Weight:
600g
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

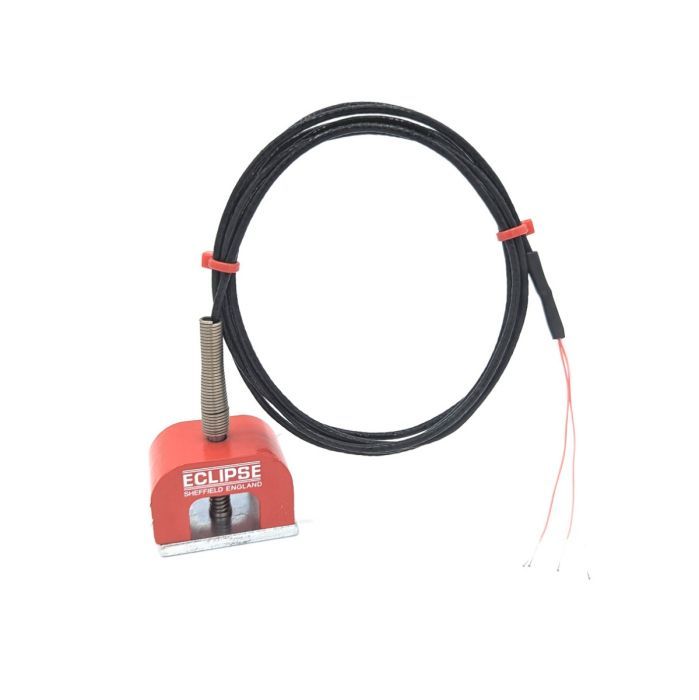

A surface mount magnet temperature sensor with a measuring range of -50 to +250°C with a Pt100 class A 4 wire resistance thermometer detector (RTD). With 1 and 3 metres as standard PFA insulated flexible lead wire and stripped tails

  • 9Kg pull strength Horseshoe magnet with 40mm x 25.5mm diameter
  • Magnet will hold 90% of its pull strength at 250°C
  • Spring loaded tip for good contact
  • Pt100 RTD class A 4 wire resistance thermometer as per IEC 751
  • Surface temperature measurement of Ferrous metals
  • Sensor temperature rating -50 to +250°C
General Description Surface temperature measurement of Ferrous metals
Sensor Type RTD
Magnet 9Kg pull strength Horseshoe magnet with 40mm x 25.5mm diameter. Magnet will hold 90% of its pull strength at 250°C
Cable Length 1m
Cable Type PFA insulated flexible lead wire and stripped tails
Cable Termination Bare Tails
Max. Temperature 250°C
Min. Temperature -50°C
Standards Met Pt100 RTD class A 4 wire resistance thermometer as per IEC 751
Tip Spring loaded tip for good contact
