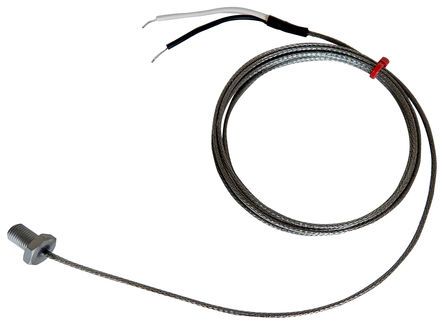

IEC Bolt Thermocouple, Glassfibre Stainless Steel Over Braided Cable - Type K, J
Change Currency
SKU
XE-5557
£25.43
£21.19
Bolt sensors are generally screwed into the surface which normally increases the speed of response and sensitivity of the measurement. Suitable for use up to +250°C.
| Thermocouple Type | K or J |
|---|---|
| Thermocouple Junction | Bolts have grounded junctions |
| Cable Length | 2m |
| Cable Type | Glassfibre stainless steel over braided cable |
| Cable Termination | Bare tails |
| Max. Temperature | +250°C |
| Bolt thread/pitch | M8 x 1mm / M10 x 1mm / M12 x 1mm |
