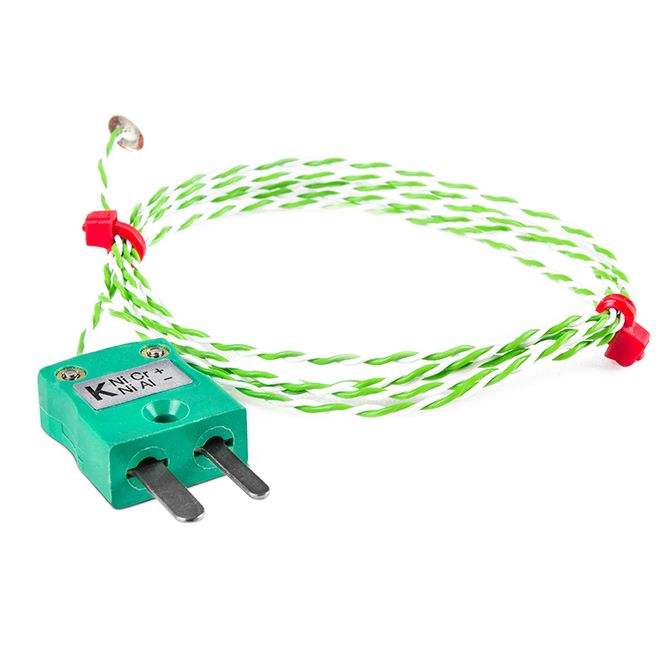

IEC Fine Wire Disc Thermocouple, PTFE with Miniature Plug - Type K,J
Change Currency
SKU
XE-5620
£18.82
£15.68
High temperature adhesive kapton strips (13x18mm x 5) for quick and easy attachment to surface/process. Copper disc, 6.35mm diameter x 0.3mm thick.
| General Description | Exposed junction thermocouple with Copper Disc brazed at tip |
|---|---|
| Sensor Type | Copper disc |
| Thermocouple Type | Type ‘K’ or ‘J’ IEC, Type 'K' BS |
| Thermocouple Junction | Grounded measuring junction |
| Cable Length | 1 or 2 metre |
| Cable Type | 1/0.2mm PTFE insulated twisted wire |
| Termination Type | Miniature flat pin plug, colour coded in accordance IEC 584 |
