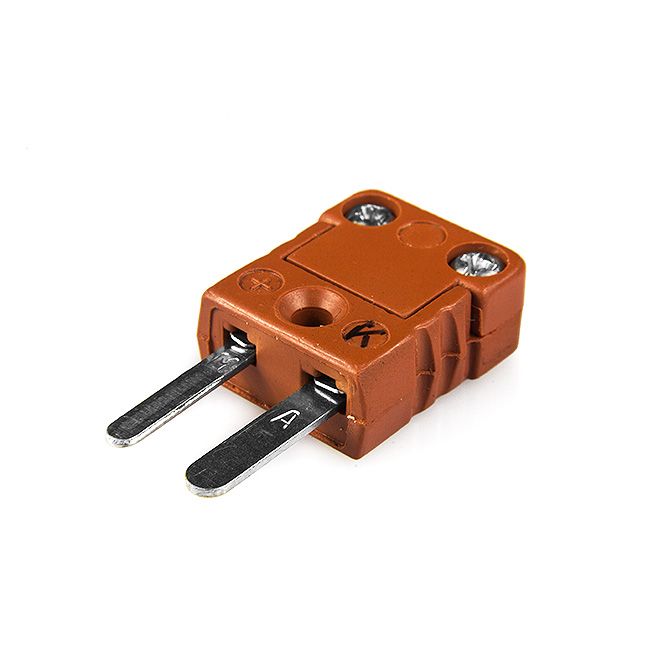

High Temperature Miniature Thermocouple Connector MTC-K-M-HTP Plug Type K
Change Currency
SKU
XE-1156-001
£12.80
£10.67
High Temperature Miniature Thermocouple Connector MTC-K-M-HTP Plug Type K
Heavy duty plastic body, miniature size to match with flat pin plug. High temperature for use up to 425°C
Specifications
| General Description | Heavy duty plastic body. High temperature for use up to 425°C For R,S & B compensating alloys limit the maximum usable temperature to 260°C |
|---|---|
| Thermocouple Type | Type K High Temp |
| Connector Type | High Temp Plug |
| Connector Size | Miniature |
| Colour | Brown |
| Max. Temperature | 425°C |
| Pins | Flat Pins |
| +Positive Contact | Nickel Chromium |
| -Negative Contact | Nickel Alloy |
| Standards Met | BS EN 50212:1997. RoHS |
3D Animation
3D Animation of High Temperature Miniature Thermocouple Connector From Labfacility
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
