Miniature Quick Wire Panel Mount Thermocouple Connector Stainless Steel Bracket AM-B-SSPFQ Type B ANSI
Change Currency
SKU
XE-9006-001
£8.30
£6.92
- Buy 2 - 9 for £4.72 £3.93 each
- Buy 10 - 99 for £4.01 £3.34 each
- Buy 100+ for £3.77 £3.14 each

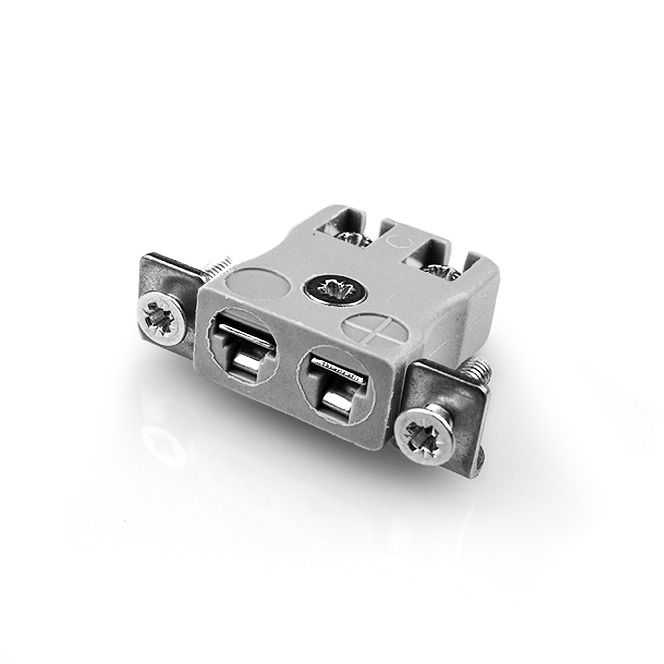

Miniature Quick Wire Thermocouple Connector Panel Mount with Stainless Steel Bracket AM-B-SSPFQ Type B ANSI
Miniature size sockets supplied with stainless steel brackets, allows quick, reliable, rugged fitting into panel
Specifications
| General Description | Contacts are polarized to ensure correct connection |
|---|---|
| Thermocouple Type | B ANSI |
| Connector Type | Quick Wire Socket with SS Bracket |
| Connector Size | Miniature |
| Colour | Grey |
| Max. Temperature | 220°C |
| +Positive Contact | Copper |
| -Negative Contact | Copper |
| Standards Met | BS EN 50212:1997. RoHS |
3D Animation
3D Animation of Miniature Quick Wire Panel Mount Thermocouple Connector with Stainless Steel Bracket From Labfacility
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
