Panels for Standard Fascia Sockets (Type FF)

Change Currency

SKU
XE-1801
£4.99 £4.16
Lead Time:
Select Options
Tariff Code:
85369010
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

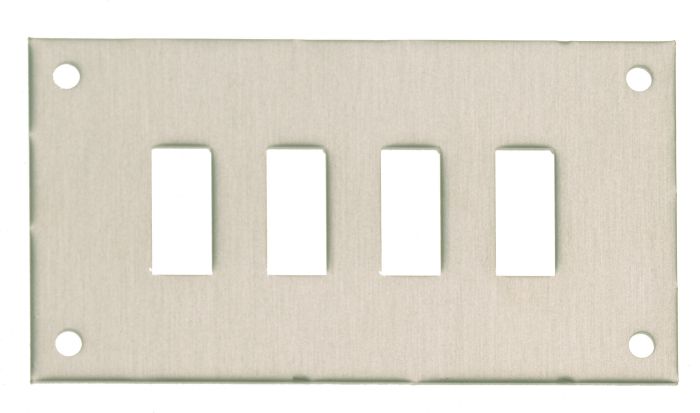

  • Flat aluminium panel
  • Suitable for standard fascia sockets
  • Type FF
  • For IEC standard fascia thermocouple socket for use with this panel click here
  • For ANSI standard fascia thermocouple socket for use with this panel click here
  • For JIS standard fascia thermocouple socket for use with this panel click here

We also offer a range of thermocouple panel systems, a selection of standard pre-assembled thermocouple panels, 1-24 way with thermocouple types to suit your specific application:

IEC Standard Thermocouple Panel Systems ANSI Standard Thermocouple Panel Systems JIS Standard Thermocouple Panel Systems



Formula for dimensions:

Length = (Nx15) + 25mm (N = number of ways per row)
Height = 45mm (single row), 75mm (double row)
Up to 12 ways in a single row, 16 to 24 ways in two rows




Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
