PCB Mounting Thermocouple Connector Socket AM-K-PCB Type K ANSI

Change Currency

SKU
XE-1139-001
£4.20 £3.50
  • Buy 2 - 9 for £3.26 £2.72 each
  • Buy 10 - 99 for £2.77 £2.31 each
  • Buy 100+ for £2.62 £2.18 each
Lead Time:
7 - 10 working days
Weight:
5g
Tariff Code:
85369010
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

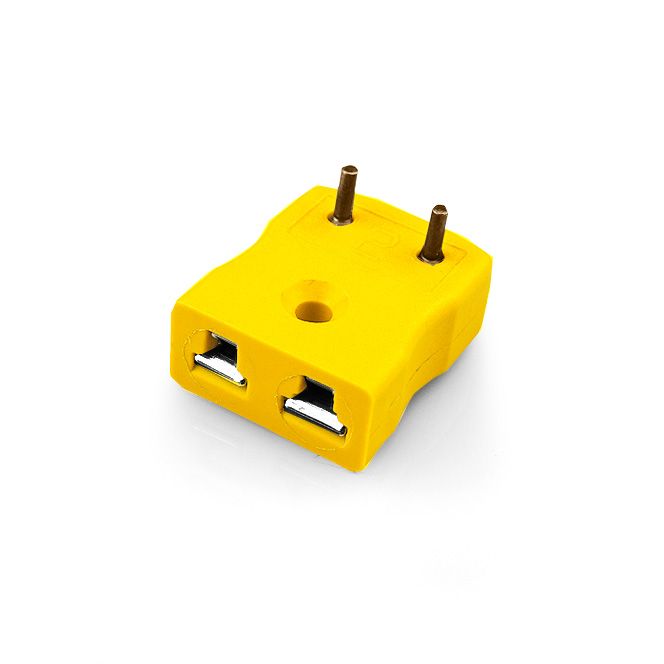

PCB Mounting Thermocouple Connector Socket AM-K-PCB Type K ANSI

Specially designed for PCBs, solid pins for direct board mounting & provision for CJC sensor

Specifications

General Description Versatile, high quality circuit board mounting miniature socket
Thermocouple Type K ANSI
Connector Type PCB socket
Connector Size Miniature
Colour Yellow
Max. Temperature 220°C
+Positive Contact Nickel Chromium
-Negative Contact Nickel Alloy
Standards Met BS EN 50212:1997. RoHS

3D Animation

3D Animation of PCB Mounting Thermocouple Connector Socket From Labfacility



Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
