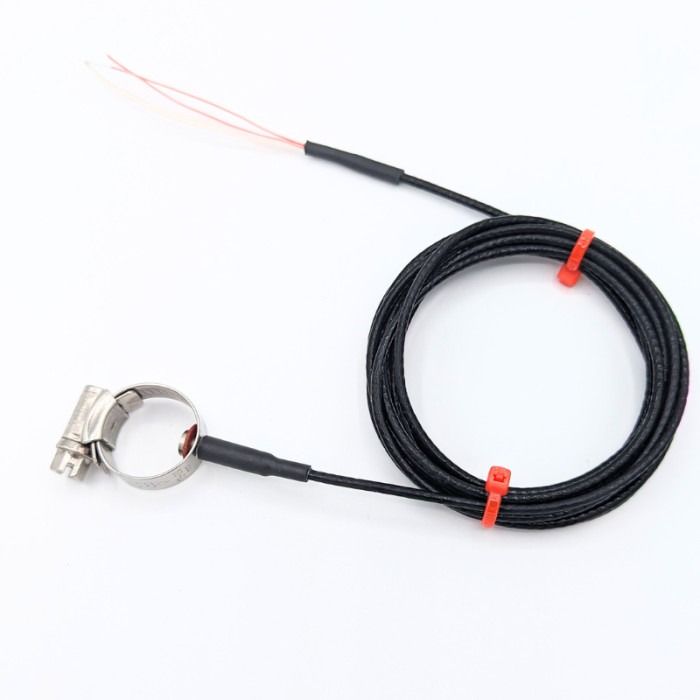

Pipe Clamp Surface Pt100 RTD Jubilee Style with PFA Lead - 22-30mm
Change Currency
SKU
XE-7791-001
£60.01
£50.01
- Buy 2 - 4 for £45.01 £37.51 each
- Buy 5 - 14 for £36.80 £30.67 each
- Buy 15+ for £31.28 £26.07 each
A surface temperature sensor with a measuring range of -50 to +250°C with a Pt100 class A 4 wire resistance thermometer detector (RTD).
Available in four sizes with adjustable jubilee clip to fit pipe diameters of 13-20mm, 20-32mm, 30-45mm and 40-55mm.
Designed to be easily installed for robust clamp contact with pipes or round surfaces with various diameters.
With a 2 metres PFA insulated flexible lead wire and stripped tails.
- Pt100 RTD class A 4 wire resistance thermometer as per IEC 751
- Sensor temperature rating -50 to +250°C
- Adjustable to suit pipe diameters 13-20mm, 22-30mm, 30-45mm and 40-55mm
Specifications
| Sensor Type | Pt100 |
|---|---|
| Cable Length | 2M |
| Cable Type | PFA |
| Cable Termination | Stripped wires |
| Max. Temperature | 250°C |
| Min. Temperature | -50°C |
| Tolerance | Class A |
| Number of Wires | 4 wire |
