RTD Temperature Sensor with Hirschmann Connector - 75mm Probe Length
Change Currency
SKU
XE-5682-001
£88.54
£73.78

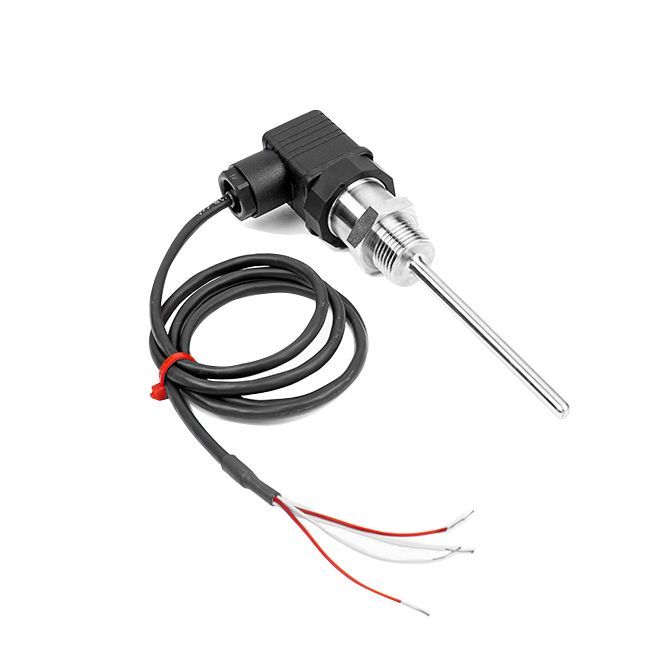

A cost effective 6mm diameter Pt100 sensor assembly housed in a 316 Stainless Steel body with 1/2" BSP process connection and fitted din connector with connection lead.
Specifications
| General Description | RTD Temperature Sensor |
|---|---|
| Sensor Type | PT100 Class A |
| Minimum Span | 25°C *1 |
| Process Connection | 1/2" BSP |
| Probe Diameter | 6.0mm |
| Probe Length | 75mm |
| Cable Length | 1m |
| Cable Type | PVC Insulated |
| Max. Temperature | 250°C |
| Min. Temperature | -50°C |
| IP Rating | IP65 |
| Connection Type | DIN connector Screw terminal |
| Number of Wires | 4 wire connection |
