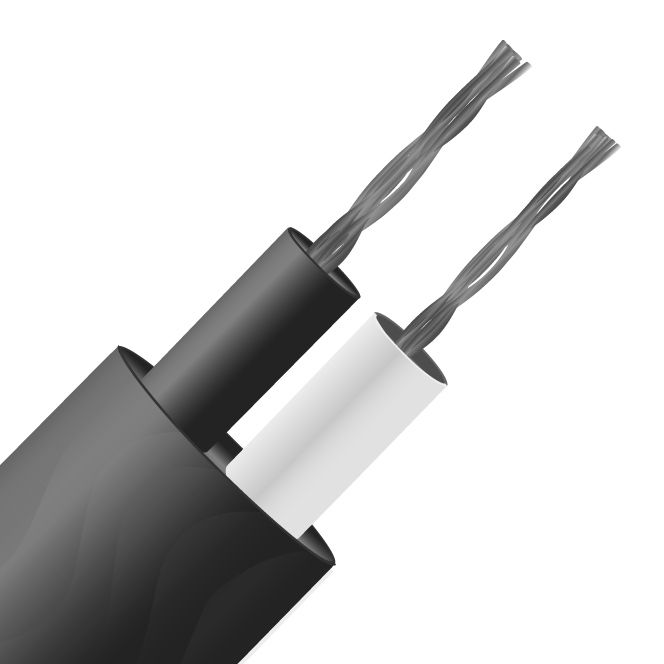

Silicone Rubber Insulated Thermocouple Cable / Wire (IEC) Type J
Change Currency
SKU
XE-2165
£16.08
£13.40
Good electrical and mechanical properties, highly flexible, resistant to oils, acids and other adverse fluids. Good heat resistance to 200°C although not suitable for direct use in high pressure steam applications.
Specifications
| General Description | Good electrical and mechanical properties, highly flexible, resistant to oils, acids and other adverse fluids. Good heat resistance to 200°C although not suitable for direct use in high pressure steam applications. |
|---|---|
| Cable Length | 10m, 25m, 50m, 100m |
| Core / Strands | 7/0.2mm |
| Outer Colour | Black |
| + Colour | Black |
| - Colour | White |
| Drain Wire | No |
| Insulation Material | Silicone rubber insulated 7/0.2mm conductors, twisted together with silicone rubber outer jacket |
| Max. Temperature | +200°C |
| Min. Temperature | -40°C |
| Screen | No |
| Standards Met | Colour code (cores & jacket) to IEC-584-3 |
| Thermocouple Type | J |
| Tolerance | Class 2 to IEC-584 |
