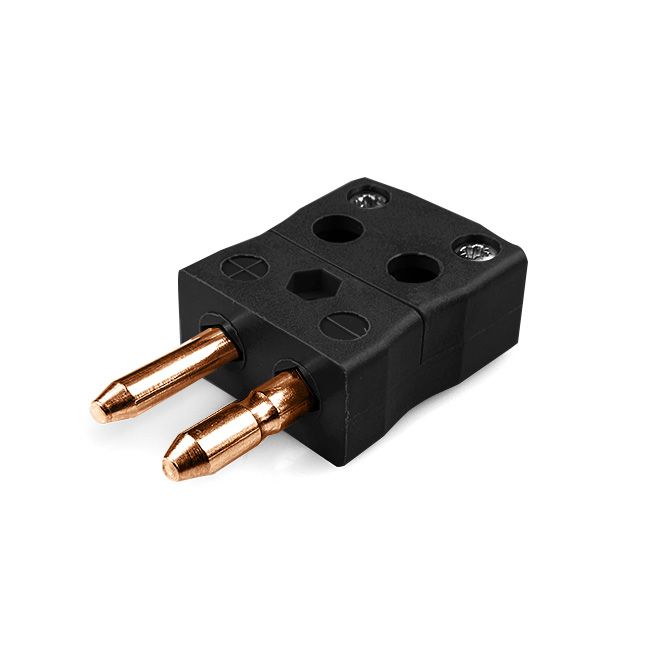

Standard Quick Wire Thermocouple Connector Plug JS-R/S-MQ Type R/S JIS

Change Currency

SKU
XE-9322-001
£7.15 £5.96
  • Buy 2 - 9 for £4.98 £4.15 each
  • Buy 10 - 99 for £4.22 £3.52 each
  • Buy 100+ for £3.98 £3.32 each
Lead Time:
In-Stock
Weight:
22g
Tariff Code:
85369010
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

Standard Quick Wire Thermocouple Connector Plug JS-R/S-MQ Type R/S JIS

Easy 'jab-in' connection for rapid termination, just push wire in and tighten screw. Contacts are polarised to prevent incorrect connection

Specifications

General Description Easy 'jab-in' connection for rapid termination, contacts are polarised to prevent incorrect connection.
Thermocouple Type R/S JIS
Connector Type Quick Wire Plug
Connector Size Standard
Colour Black
Max. Temperature 220°C
Pins Solid Round Pins
+Positive Contact Copper
-Negative Contact Copper Alloy
Standards Met BS EN 50212:1997. RoHS

3D Animation

3D Animation Standard Quick Wire Thermocouple Connector Plug From Labfacility



Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
