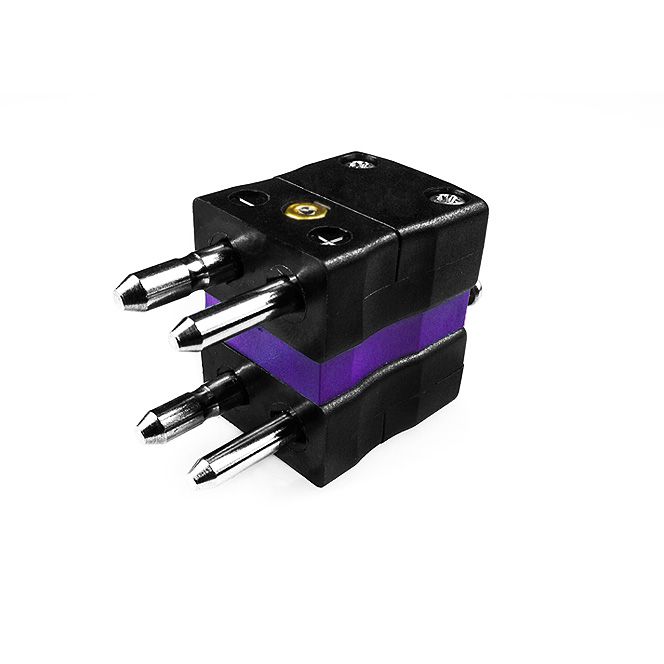

Standard Thermocouple Duplex Thermocouple Connector Plug JS-E-MD Type E JIS
Change Currency
SKU
XE-9366-001
£16.81
£14.01
- Buy 2 - 9 for £10.80 £9.00 each
- Buy 10 - 99 for £9.18 £7.65 each
- Buy 100+ for £8.64 £7.20 each
Standard Thermocouple Duplex Thermocouple Connector Plug JS-E-MD Type E JIS
Rugged glass filled polyester bodies. Plugs fitted with solid thermocouple pins. Contacts are polarised to prevent incorrect connection
Specifications
| General Description | Rugged glass filled polyester bodies, suitable for industrial applications. |
|---|---|
| Thermocouple Type | E JIS |
| Connector Type | Duplex Plug |
| Connector Size | Standard |
| Colour | Violet |
| Dimensions | See Schematic Drawing (Product Literature Tab) |
| Max. Temperature | 220°C |
| Pins | Solid Round Pins |
| +Positive Contact | Nickel Chromium |
| -Negative Contact | Copper Nickel |
| Standards Met | BS EN 50212:1997. RoHS |
3D Animation
3D Animation Standard Thermocouple Connector Duplex Plug from Labfacility
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
