Surface Mount Type K Thermocouple Sensor
Change Currency
SKU
XE-7750
£39.26
£32.72

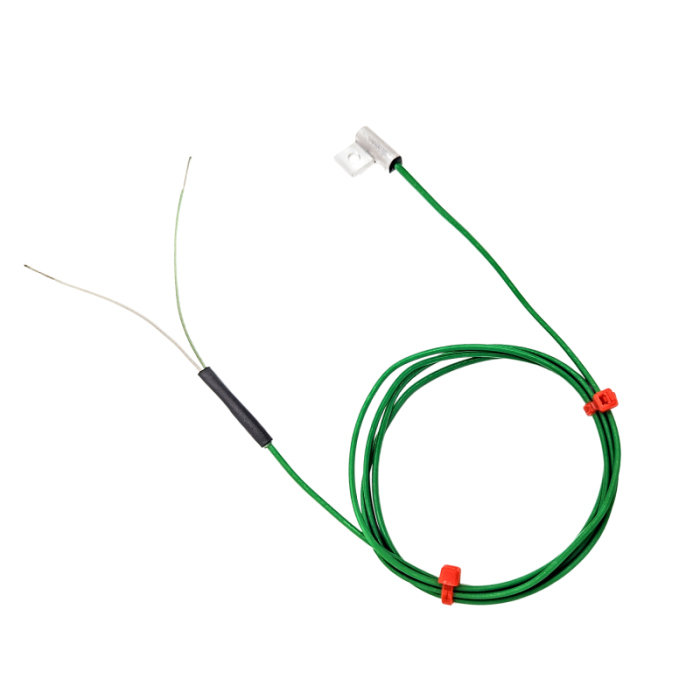

Surface Mount Type K Thermocouple.
A bolt-on type thermocouple with an aluminium housing for fast thermal response and tab with 3mm mounting hole for easy mounting. It is a Class 1 accuracy type K thermocouple as standard complete with a PFA lead with tails or mini plug. The sensor can be cemented, glued, screwed, or bolted on most flat surfaces.
Specifications
| Sensor Type | Thermocouple Type K |
|---|---|
| Fitting | 3mm Mounting Hole |
| Cable Type | PFA |
| Termination Type | Bare Tails or Miniature Plug Options |
| Max. Temperature | 230°C |
| Min. Temperature | -50°C |
| Tolerance | Class 1 |
| Length | 1M, 2M or 5M Lead |
| Important Information | Optional Type J or T version available on request |
