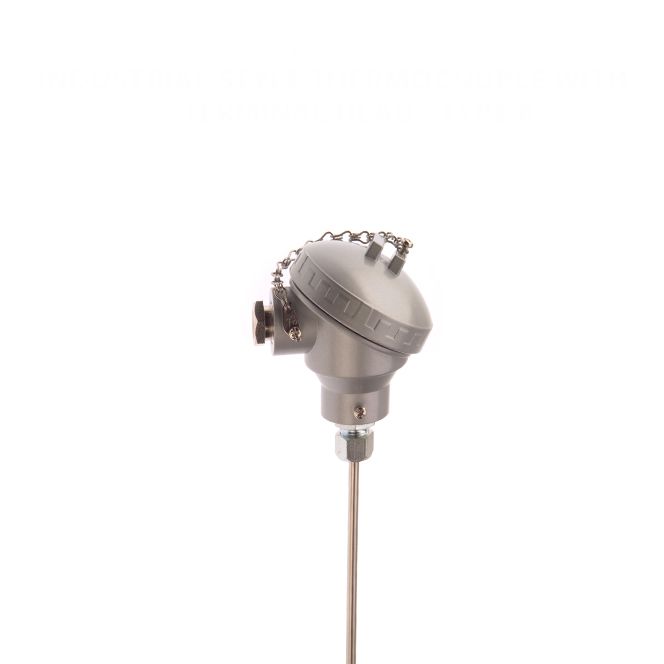

Industrial Style Mineral Insulated Thermocouple with KNE Terminal Head - Types K,J
Change Currency
SKU
XE-3249
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
---|
General Description | Highly flexible, sheath can be bent/formed to suit many applications and processes |
---|---|
Sensor Type | Mineral insulated Thermocouple fitted with KNE terminal head |
Thermocouple Type | Type K and J available |
Thermocouple Junction | Insulated hot junction |
Probe Diameter | 6.0mm diameter |
Sheath Material | 310 stainless steel sheath |
Head Type | KNE, Cast aluminium finish, screw type lid with chain |
Gland | M16 x 1.5mm Plated brass gland fitted |
Max. Temperature | +1100°C |
Min. Temperature | -40°C |
IP Rating | IP67 |
