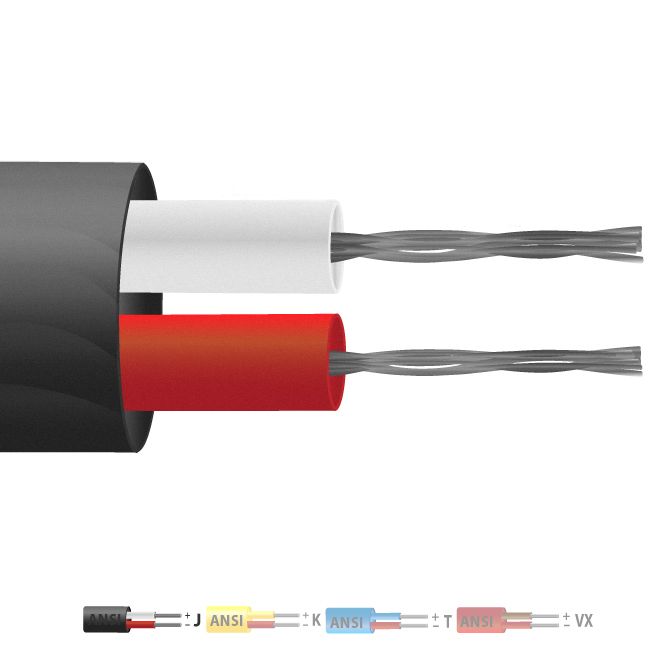

Type J PVC Insulated Flat Pair Thermocouple Cable / Wire (ANSI)
Change Currency
SKU
XE-2806
£6.40
£5.33
Specifications
| General Description | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Cable Length | 10, 25, 50, 100 & 200m |
| Cable Type | Flat pair construction |
| Core / Strands | 7/0.2mm |
| Conductor Cross Section 1/0.2 (mm2) | 0.219 |
| Outer Colour | Black |
| + Colour | White |
| - Colour | Red |
| Drain Wire | No |
| Insulation Material | PVC Insulated |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 2.7 |
| Max. Temperature | +105°C |
| Min. Temperature | -10°C |
| + Conductor | Iron |
| - Conductor | Constantan |
| Screen | No |
| Standards Met | Colour code (cores & jacket) to ANSI MC96.1 |
| Thermocouple Type | J |
| Tolerance | Class 2 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
