Type K PTFE Insulated Flat Pair Thermocouple Cable / Wire (IEC)

Change Currency

SKU
XE-2155
£23.58 £19.65
Lead Time:
Select Options
Weight:
1.00KG
Tariff Code:
90259000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

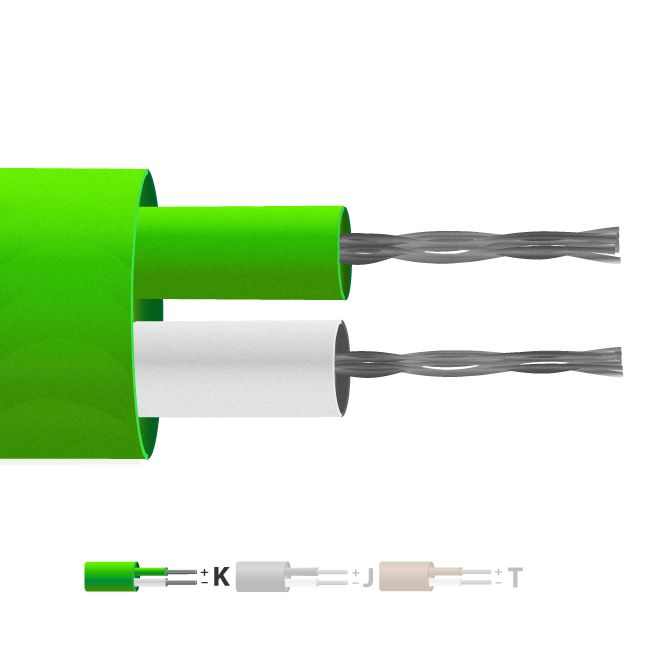

Type K PTFE Insulated Flat Pair Thermocouple Cable / Wire (IEC)

PTFE insulated flat pair. PTFE has a good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids.

Specifications



General Description Resistant to oils, acids adverse agents and fluids. Good mechanical strength and flexibility.
Cable Length 10m, 25m, 50m, 100m
Cable Type Flat pair cable
Core / Strands 7/0.2mm , 1/0.315mm
Conductor Cross Section 1/0.315 (mm2) 0.078
Conductor Cross Section 7/0.2 (mm2) 0.219
Outer Colour Green
+ Colour Green
- Colour White
Drain Wire No
Insulation Material PTFE insulated
Loop Resistance 1/0.315 (Ohms per combined metre) 12.8
Loop Resistance 7/0.2 (Ohms per combined metre) 4.5
Max. Temperature +260°C
Min. Temperature -75°C
+ Conductor Nickel Chromium
- Conductor Nickel Aluminium
Screen No
Standards Met Colour code (cores & jacket) to IEC-584-3
Thermocouple Type K
Tolerance Class 1

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.



Product Download Icon

Cable / Wire Insulation Colour Codes

Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
