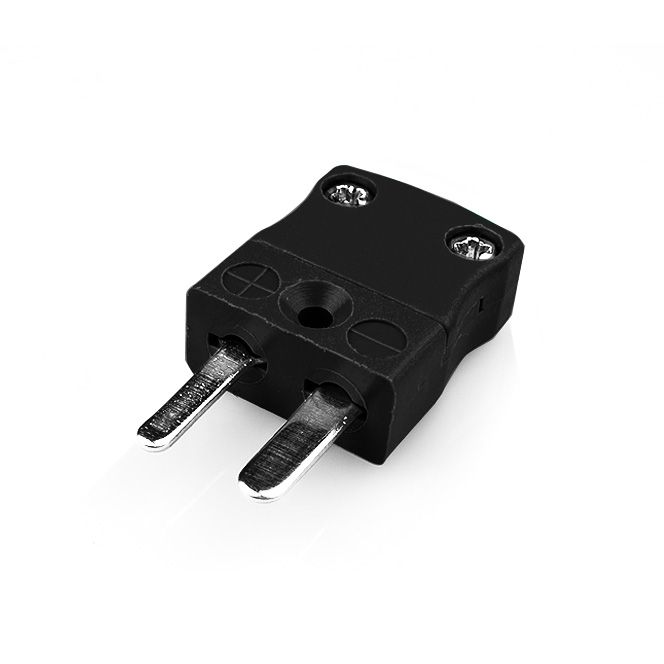

Miniature Thermocouple Connector Plug AM-J-M Type J ANSI
With flat pins to suit thermocouple type and ideal for general purpose use, all contacts are polarised to ensure correct connection. These connectors will accept thermocouple cable up to 4mm in diameter.
Specifications
| General Description | Ideal for general purpose use. Contacts are polarised to ensure correct connection. |
|---|---|
| Thermocouple Type | J ANSI |
| Connector Type | Plug |
| Connector Size | Miniature |
| Colour | Black |
| Max. Temperature | 220°C |
| Pins | Flat Pins |
| +Positive Contact | Iron |
| -Negative Contact | Copper Nickel |
| Standards Met | BS EN 50212:1997. RoHS |
3D Animation
3D Animation of Miniature Thermocouple Connector Plug From Labfacility
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
