Standard Quick Wire Panel Mount with Stainless Steel Bracket AS-T-SSPFQ Type T ANSI
Change Currency
SKU
XE-1529-001
£10.03
£8.36
- Buy 2 - 9 for £6.59 £5.49 each
- Buy 10 - 99 for £5.60 £4.67 each
- Buy 100+ for £5.27 £4.39 each

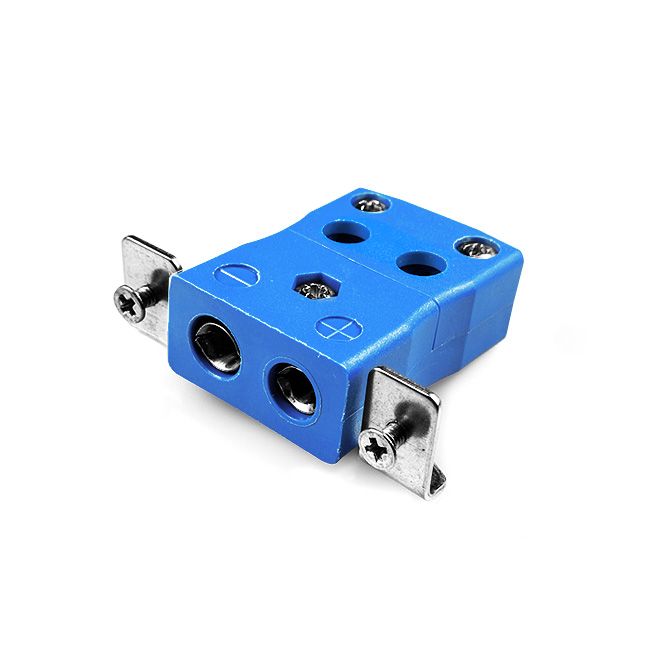

Standard Quick Wire Panel Mount Thermocouple Connector with Stainless Steel Bracket AS-T-SSPFQ Type T ANSI
Intended for use in more industrial processes but can be used in all applications as desired. Easy 'jab-in' connection for rapid termination, just push wire in and tighten screw
Specifications
| General Description | Easy 'jab-in' connection for rapid termination, just push wire in and tighten screw |
|---|---|
| Thermocouple Type | T ANSI |
| Connector Type | Quick Wire Socket with SS Bracket |
| Connector Size | Standard |
| Colour | Blue |
| Max. Temperature | 220°C |
| +Positive Contact | Copper |
| -Negative Contact | Copper Nickel |
| Standards Met | BS EN 50212:1997. RoHS |
3D Animation
3D Animation Standard Quick Wire Panel Mount Thermocouple Connector with Stainless Steel Bracket from Labfacility
