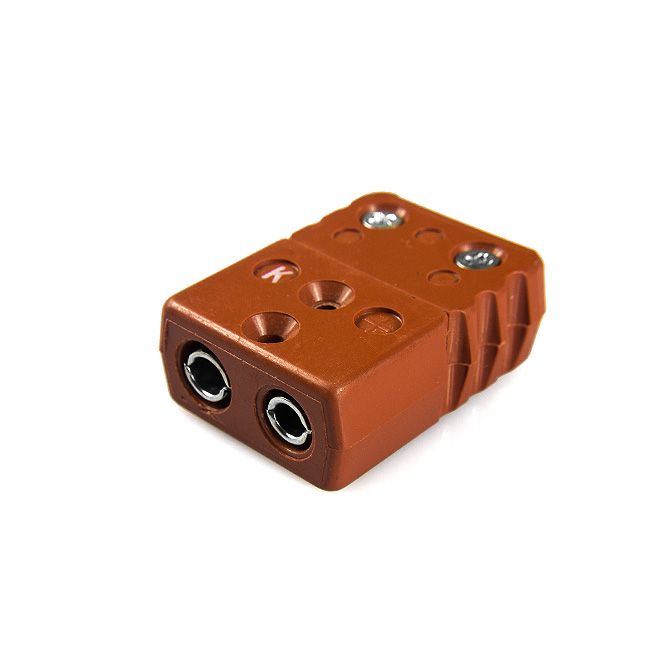

High temperature Standard Thermocouple Connector Socket STC-R/S-F-HTP Type R/S
Change Currency
SKU
XE-1609-001
£23.76
£19.80
Lead time for these items can be around 4 - 5 weeks. You will be contacted by our sales team with more details and delivery update after ordering.
Please use the 'Product Enquiry' tab on the right if you require more information before ordering.
High temperature Standard Thermocouple Connector Socket STC-R/S-F-HTP Type R/S
High temperature for use up to 425°C. Heavy duty plastic body.
Specifications
| General Description | Contacts are polarised to prevent incorrect connection. Heavy duty plastic body |
|---|---|
| Thermocouple Type | R/S |
| Connector Type | High Temp Socket |
| Connector Size | Standard |
| Colour | Brown |
| Dimensions | See Schematic Drawing (Product Literature Tab) |
| Max. Temperature | 425°C |
| +Positive Contact | Copper |
| -Negative Contact | Copper Alloy |
| Standards Met | BS EN 50212:1997. RoHS |
3D Animation
3D Animation of Standard Thermocouple Connector High Temperature Plastic Socket From Labfacility
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
