Miniature Quick Wire Thermocouple Connector Socket JM-E-FQ Type E JIS

Change Currency

SKU
XE-9243-001
£4.50 £3.75
  • Buy 2 - 9 for £3.17 £2.64 each
  • Buy 10 - 99 for £2.69 £2.24 each
  • Buy 100+ for £2.53 £2.11 each
Lead Time:
In-Stock
Weight:
5g
Tariff Code:
85369010
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

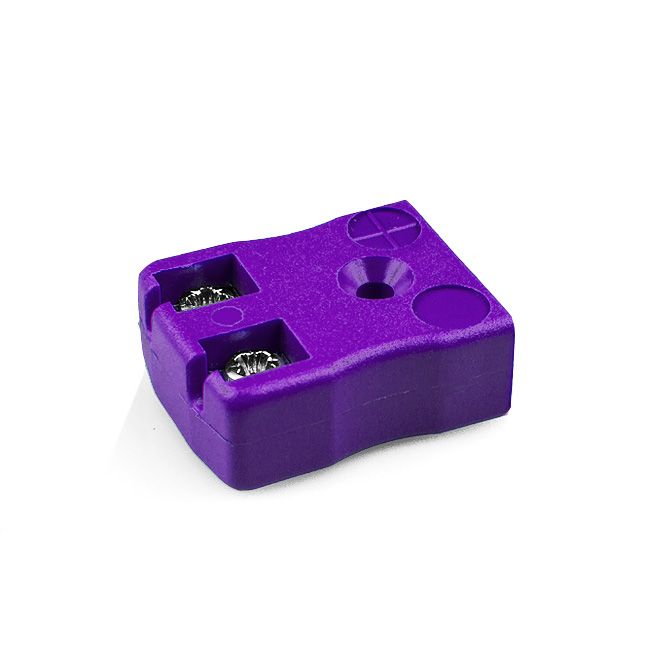

Miniature Quick Wire Connector Thermocouple Socket JM-E-FQ Type E JIS

Easy jab-in connection, just push in wire & tighten screw. Contacts are polarised to prevent incorrect termination.

Specifications

General Description Easy jab-in connection, just push in wire & tighten screw.
Thermocouple Type E JIS
Connector Type Quick Wire Socket
Connector Size Miniature
Colour Violet
Max. Temperature 220°C
+Positive Contact Nickel Chromium
-Negative Contact Copper Nickel
Standards Met BS EN 50212:1997. RoHS

3D Animation

3D Animation of Miniature Quick Wire Socket From Labfacility



Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
