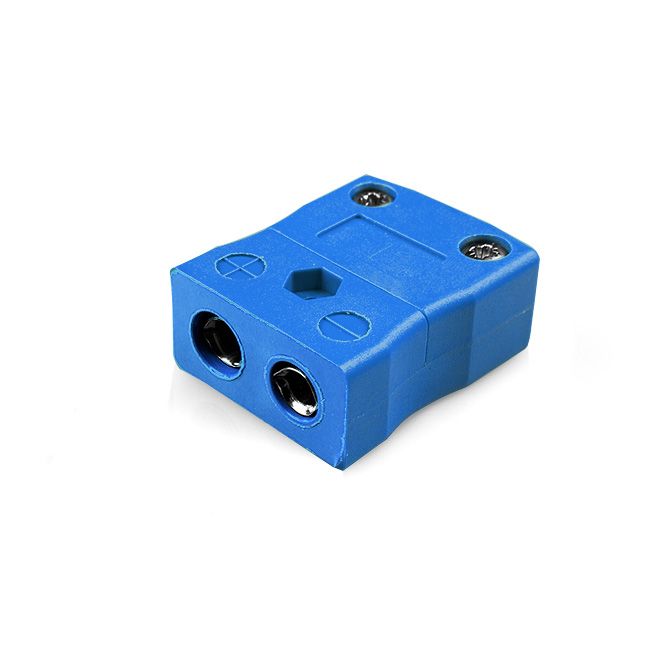

Standard Thermocouple Connector In-Line Socket JS-K-F Type K JIS
Change Currency
SKU
XE-9272-001
£6.50
£5.42
- Buy 2 - 9 for £4.87 £4.06 each
- Buy 10 - 99 for £4.14 £3.45 each
- Buy 100+ for £3.90 £3.25 each
Standard Thermocouple Connector In-Line Socket JS-K-F Type K JIS
Accepts standard round plug pins, suitable for industrial applications
Specifications
| General Description | Accepts standard round plug pins, contacts are polarised to prevent incorrect connection. |
|---|---|
| Thermocouple Type | K JIS |
| Connector Type | Socket |
| Connector Size | Standard |
| Colour | Blue |
| Max. Temperature | 220°C |
| +Positive Contact | Nickel Chromium |
| -Negative Contact | Nickel Alloy |
| Standards Met | BS EN 50212:1997. RoHS |
3D Animation
3D Animation of Standard Thermocouple Connector Socket From Labfacility
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
