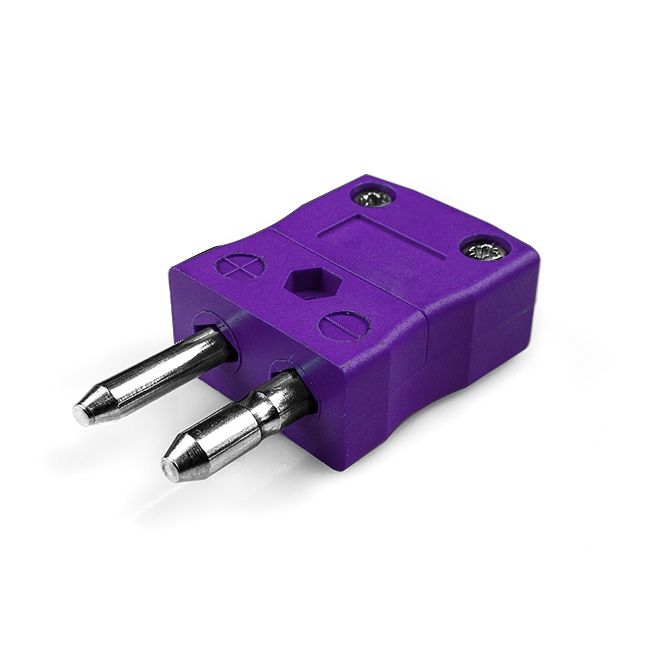

Standard Thermocouple Connector Plug JS-E-M Type E JIS
Change Currency
SKU
XE-9350-001
£6.34
£5.28
- Buy 2 - 9 for £4.98 £4.15 each
- Buy 10 - 99 for £4.22 £3.52 each
- Buy 100+ for £3.98 £3.32 each
Standard Thermocouple Connector Plug JS-E-M Type E JIS
Contacts are made from true Thermocouple alloys. Suitable for industrial applications
Specifications
| General Description | Contacts are polarised to prevent incorrect connection |
|---|---|
| Thermocouple Type | E JIS |
| Connector Type | Plug |
| Connector Size | Standard |
| Colour | Violet |
| Max. Temperature | 220°C |
| Pins | Solid Round Pins |
| +Positive Contact | Nickel Chromium |
| -Negative Contact | Copper Nickel |
| Standards Met | BS EN 50212:1997. RoHS |
3D Animation
3D Animation of Standard Thermocouple Connector Plug From Labfacility
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
