Panels for Miniature Fascia Sockets (Type FF)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Change Currency

SKU

XE-1701

£5.76 £4.80

Option

Selected Part Number / Show All

Qty

Lead Time:

Select Options

Tariff Code:

85369010

Country of Manufacture:

RoHS Compliant:

RoHS

Product Compliance:

Download Here

Postage & Delivery:

Please click here

You can now buy Labfacility products through DigiKey and Farnell, our trusted global distributors.

Details

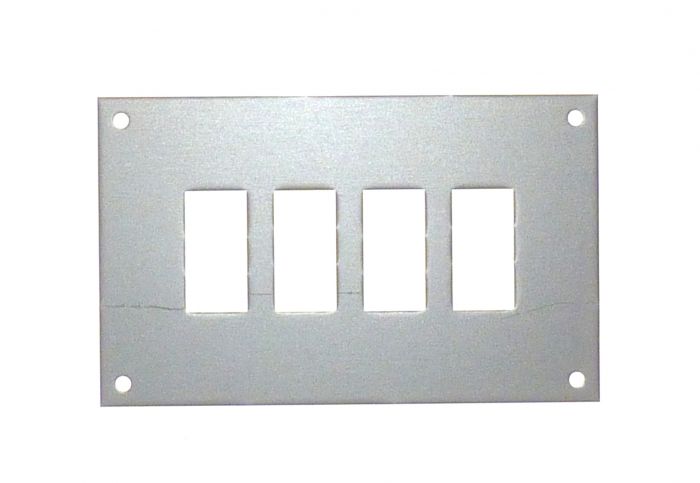

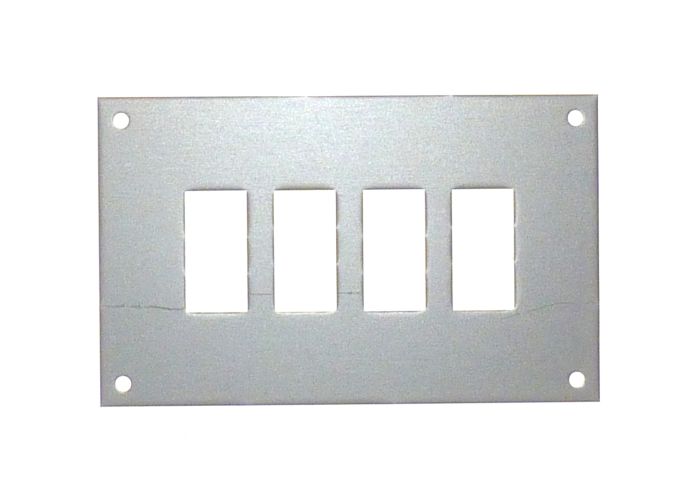

Flat aluminium panel
Suitable for miniature fascia sockets (type FF)
For IEC miniature fascia thermocouple socket for use with this panel click here
For ANSI miniature fascia thermocouple socket for use with this panel click here
For JIS miniature fascia thermocouple socket for use with this panel click here

We also offer a range of thermocouple panel systems, a selection of miniature pre-assembled thermocouple panels, 1-24 way with thermocouple types to suit your specific application:


IEC Miniature Thermocouple Panel Systems	ANSI Miniature Thermocouple Panel Systems	JIS Miniature Thermocouple Panel Systems

Formula for dimensions:

Length = (Nx15) + 25mm (N = number of ways per row)
Height = 45mm (single row), 75mm (double row)
Up to 12 ways in a single row, 16 to 24 ways in two rows
