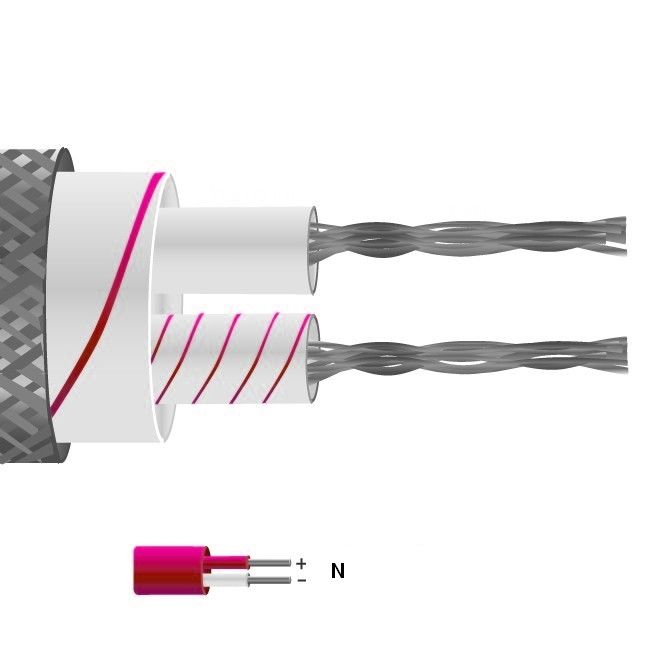

Type N Glassfibre Insulated Flat Pair Cable / Wire with Stainless Steel Overbraid (IEC)

Glassfibre insulated flat pair construction, conductors laid flat, Glassfibre insulated with Glassfibre jacket, silicone varnished throughout + stainless steel overbraid for added protection and mechanical strength. Good temperature resistance but not suitable where fluids are present.

Specifications

General Description Good strength to physical disturbance and high temperature (up to 400°C). Will not prevent ingress of fluids.
Cable Length 10m, 25m, 50m, 100m
Cable Type Flat pair cable
Core / Strands 7/0.2mm
Conductor Cross Section 7/0.2 (mm2) 0.219
+ Colour Pink
- Colour White
Drain Wire No
Insulation Material Glassfibre insulated extension cable with stainless steel overbraiding
Loop Resistance 7/0.2 (Ohms per combined metre) 6.2
Max. Temperature +350°C (short periods up to 400°C)
Min. Temperature -60°C
+ Conductor Nicrosil
- Conductor Nisil
Screen No
Standards Met Colour code (cores & jacket) to IEC-584-3
Thermocouple Type N
Tolerance Class 2

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
