Type U Glassfibre Insulated Flat Pair Cable / Wire with Stainless Steel Overbraid (IEC)
Change Currency
SKU
XE-2536
£35.20
£29.33

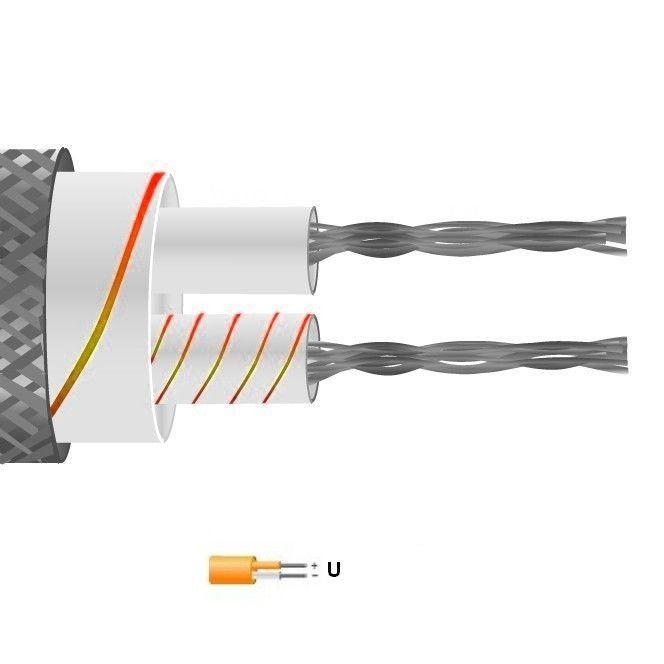

Type U Glassfibre Insulated Flat Pair Cable / Wire with Stainless Steel Overbraid (IEC)
Glassfibre insulated flat pair construction, conductors laid flat, Glassfibre insulated with Glassfibre jacket, silicone varnished throughout + stainless steel overbraid for added protection and mechanical strength. Good temperature resistance but not suitable where fluids are present.
Specifications
| General Description | Good strength to physical disturbance and high temperature (up to 400°C). Will not prevent ingress of fluids. |
|---|---|
| Cable Length | 10m, 25m, 50m, 100m |
| Cable Type | Flat pair cable |
| Core / Strands | 7/0.2mm |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| + Colour | Orange |
| - Colour | White |
| Drain Wire | No |
| Insulation Material | Glassfibre insulated extension cable with stainless steel overbraiding |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 0.2 |
| Max. Temperature | +350°C (short periods up to 400°C) |
| Min. Temperature | -60°C |
| + Conductor | Copper |
| - Conductor | Copper Nickel |
| Screen | No |
| Standards Met | Colour code (cores & jacket) to IEC-584-3 |
| Thermocouple Type | U |
| Tolerance | Class 2 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
