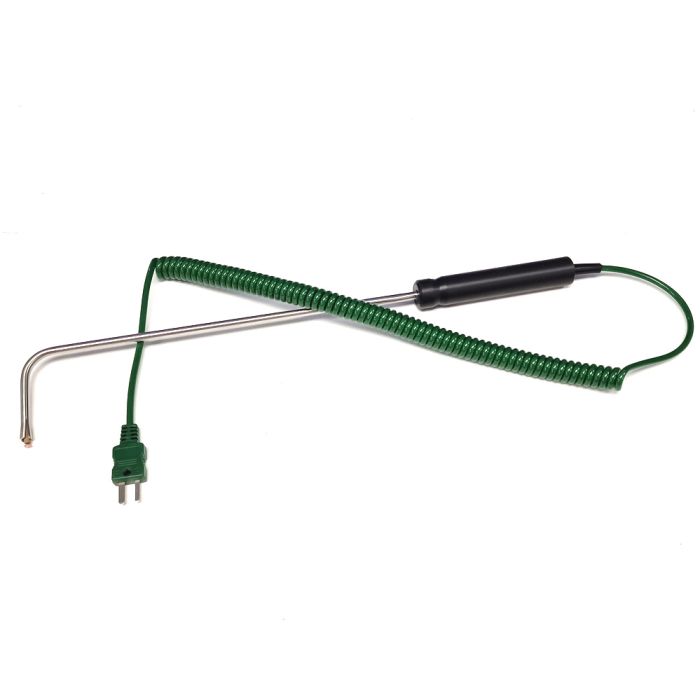

Type K IEC Right Angled - Copper Disc Tip
Change Currency
SKU
XE-3817-001
£74.90
£62.42
- Buy 2+ for £59.60 £49.67 each
Stainless steel sheath with a moulded handle and 2 metres of coiled extension cable terminated in a miniature thermocouple plug.
| General Description | Surface temperature spring loaded thermocouple with right angled probe and copper disc tip |
|---|---|
| Thermocouple Type | K |
| Calibration | IEC |
| Cable Length | 2m |
| Cable Termination | Fitted Plug |
| Max. Temperature | +600°C |
| Dimensions | Probe Ø8mm(17mmL) Tip x 60mm Hot Leg and Ø6mm x 180mm Cold Leg with Ø4.5mm copper disc. |
Labfacility - Company Overview Presentation
Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.
Thermocouple Product Guide - Labfacility
An overview of the different thermocouples available from Labfacility.
