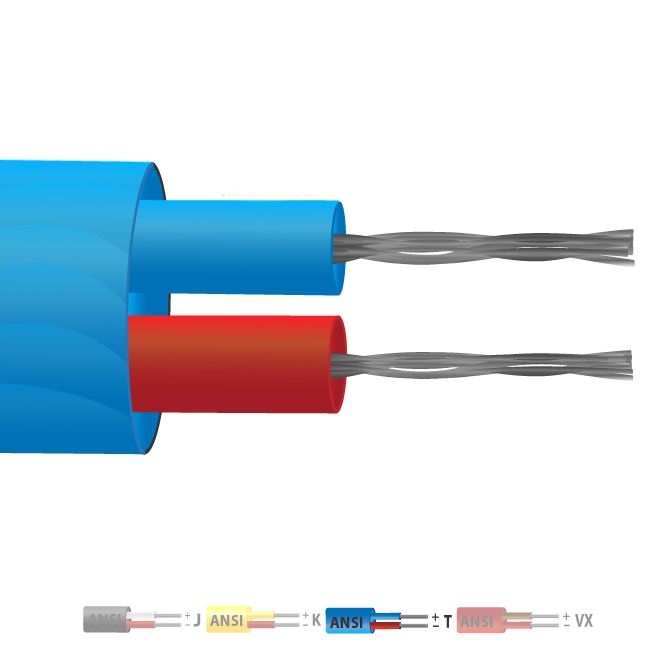

Type T PVC Insulated Flat Pair Thermocouple Cable / Wire (ANSI)

Change Currency

SKU
XE-2808
£5.89 £4.91
Lead Time:
Select Options
Weight:
0g
Tariff Code:
90259000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Specifications

General Description Good general purpose insulation for 'light' environments. Waterproof and very flexible.
Cable Length 10, 25, 50, 100 & 200m
Cable Type Flat pair construction
Core / Strands 7/0.2mm
Conductor Cross Section 7/0.2 (mm2) 0.219
Outer Colour Blue
+ Colour Blue
- Colour Red
Drain Wire No
Insulation Material PVC Insulated
Loop Resistance 7/0.2 (Ohms per combined metre) 2.3
Max. Temperature +105°C
Min. Temperature -10°C
+ Conductor Copper
- Conductor Constantan
Screen No
Standards Met Colour code (cores & jacket) to ANSI MC96.1
Thermocouple Type T
Tolerance Class 2

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.



Product Download Icon

Cable / Wire Insulation Colour Codes

Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
